AP2280-2FM

ProducentDiodes IncorporatedAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP2280-2FM_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP2280-2FM

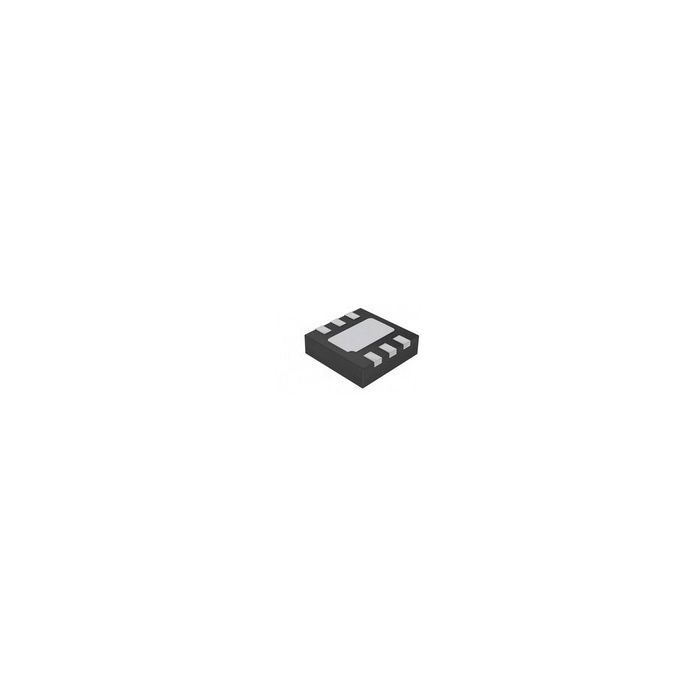

Power Switch Hi Side 1-OUT 0A 0.2Ohm 6-Pin UDFN EP

Informacje podstawowe

  • ProducentDiodes Incorporated
  • Automotive No

Informacje dodatkowe

  • Crosses 116
  • PCNs 15
  • MaskPart AP22802FM%
  • IntroductionDate Oct 09, 2007

Parametry

  • Interface Type N/A
  • Maximum Input Voltage (V) 1.5 to 6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1260
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage Range (V) N/A
  • Output Voltage Range (V) 6.8(Max)
  • Supplier Temperature Grade N/A
  • Supply Current (mA) N/A
  • Switch On Resistance (Ohm) 0.2
  • Type High Side

Więcej informacji

Do pobrania Download
Main description Power Switch Hi Side 1-OUT 0A 0.2Ohm 6-Pin UDFN EP
