AP2204K-3.0TRG1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP2204K-3.0TRG1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP2204K-3.0TRG1

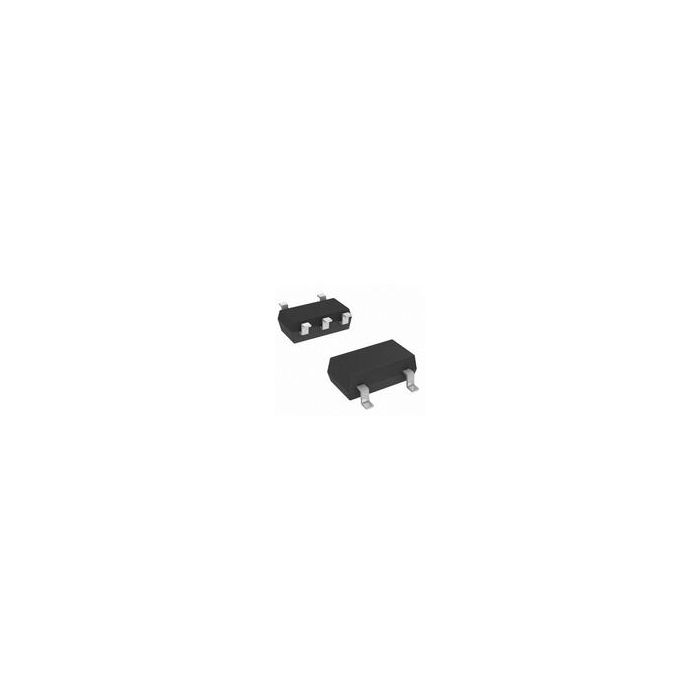

LDO Regulator Pos 3V 0.2A 5-Pin SOT-25 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 225
  • Inventory 2
  • PCNs 15
  • MaskPart AP2204K3.0%G1

Parametry

  • Accuracy (%) N/A
  • Junction to Ambient 250°C/W
  • Junction to Case 43°C/W(Typ)
  • Line Regulation 0.05%(Typ)
  • Load Regulation 0.5%(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.15@100uA|0.35@50mA|0.46@100mA|0.5@150mA
  • Maximum Input Voltage (V) 24
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.2(Typ)
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 3
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type N/A
  • Polarity Positive
  • Reference Voltage (V) 1.265
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.1@100uA|0.27@50mA|0.32@100mA|0.36@150mA
  • Typical Ground Current @ Full Load (mA) 2.5
  • Typical Output Capacitance (uF) N/A
  • Typical Output Noise Voltage (uVrms) 30
  • Typical PSRR (dB) 60
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3V 0.2A 5-Pin SOT-25 T/R
