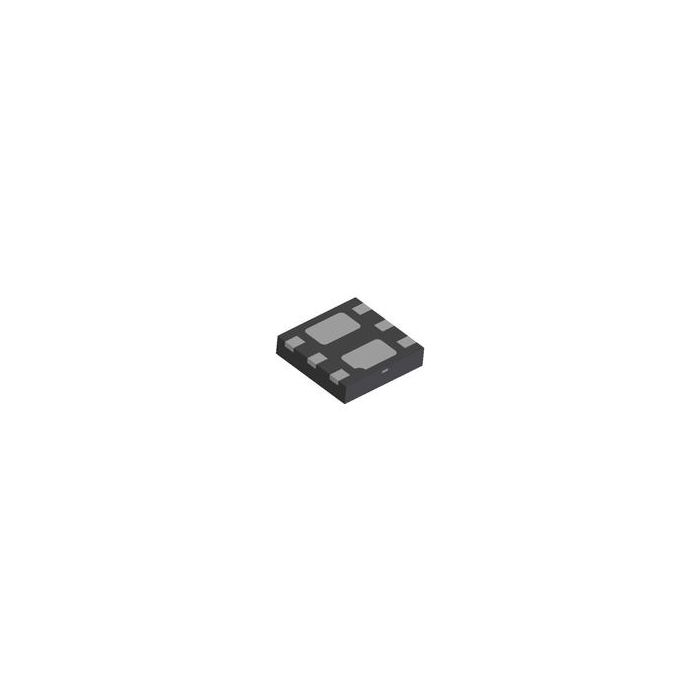

AP2191FMG-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP2191FMG-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP2191FMG-7

Hi Side Single 5.5V 2.1A 6-Pin UDFN EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 208
  • Inventory 3
  • PCNs 19
  • GIDEP-Alerts 1
  • MaskPart AP2191FMG%
  • IntroductionDate Sep 25, 2008

Parametry

  • Current Limit (A) 2.1
  • Enable Logic Active High
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Number of Switches 1
  • Supplier Temperature Grade N/A
  • Switch On Resistance (mOhm) 140
  • Type High Side Switch
  • Typical Fall Time (us) 50
  • Typical Rise Time (us) 600
  • Typical Turn-Off Delay Time (us) 100
  • Typical Turn-On Delay Time (us) 50
  • Typical UVLO Threshold (V) 1.9

Więcej informacji

Do pobrania Download
Main description Hi Side Single 5.5V 2.1A 6-Pin UDFN EP T/R
