AP1621AWLA

ProducentDiodes IncorporatedEURoHSYes (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1621AWLA_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1621AWLA

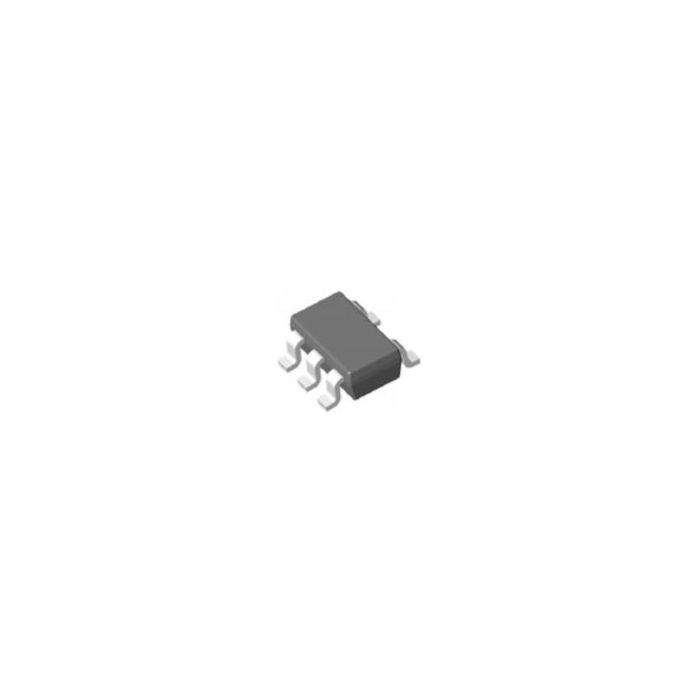

DC/DC Cntrlr Single-OUT Step Down 360kHz 5-Pin SOT-23 Tape

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 292
  • PCNs 17
  • MaskPart AP1621AWL%
  • IntroductionDate Jun 09, 2004

Parametry

  • Control Method PWM
  • Maximum Input Voltage (V) 7
  • Maximum Operating Temperature (°C) 80
  • Maximum Output Current (A) 0.1
  • Maximum Power Dissipation (mW) 250
  • Maximum Supply Current (mA) 0.102
  • Maximum Switching Frequency (kHz) 360
  • Minimum Input Voltage (V) 2.2
  • Minimum Operating Temperature (°C) -30
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.2 to 7
  • Output Voltage (V) N/A
  • Supplier Temperature Grade N/A
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 360kHz 5-Pin SOT-23 Tape
