AP1605TSA

ProducentDiodes IncorporatedAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1605TSA_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1605TSA

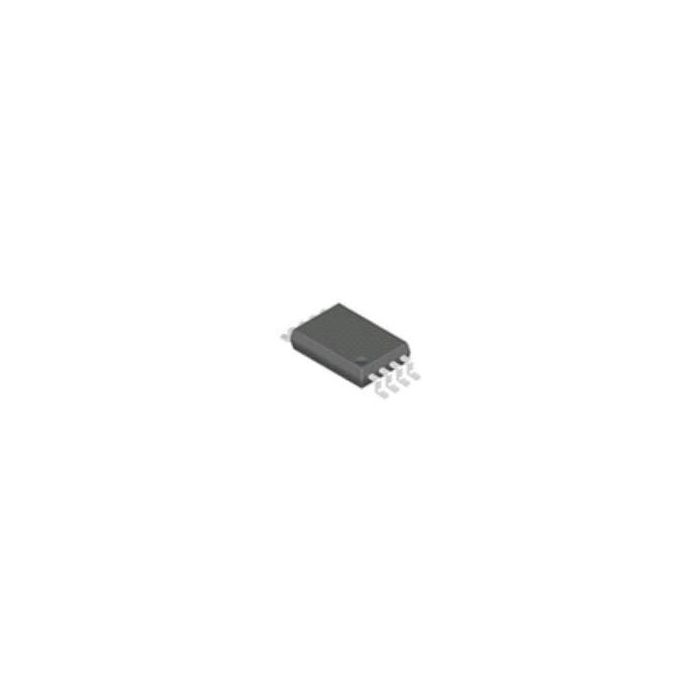

Conv DC-DC 2.5V to 7V Step Down Dual-Out 2.2V to 7V 1.5A 8-Pin TSSOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • Automotive No

Informacje dodatkowe

  • PCNs 17
  • MaskPart AP1605TSA%
  • IntroductionDate Apr 05, 2004

Parametry

  • Efficiency (%) 93(Typ)
  • Isolation N/A
  • Line Regulation 0.5%
  • Load Regulation 1.5%
  • Maximum Input Voltage (V) 7
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1.5(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -20
  • Minimum Storage Temperature (°C) -20
  • Number of Outputs 2
  • Operating Supply Voltage (V) 2.5 to 7
  • Output Type Adjustable
  • Output Voltage (V) 2.2 to 7
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 220 to 380
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 100

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 7V Step Down Dual-Out 2.2V to 7V 1.5A 8-Pin TSSOP T/R
