AP1551SA

ProducentDiodes IncorporatedAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1551SA_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1551SA

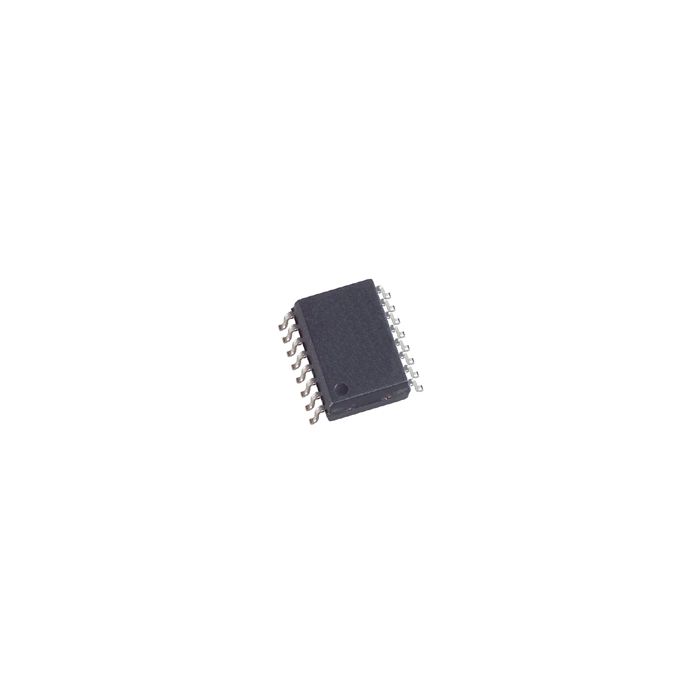

Conv DC-DC 22V Synchronous Step Down Dual-Out 1.23V 2A 16-Pin SOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • Automotive No

Informacje dodatkowe

  • PCNs 18
  • MaskPart AP1551SA%
  • IntroductionDate Nov 16, 2004

Parametry

  • Efficiency (%) 76
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 22
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) N/A
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 2
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 1.23(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 173
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 5000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 22V Synchronous Step Down Dual-Out 1.23V 2A 16-Pin SOP T/R
