AP1503-33SLA

ProducentDiodes IncorporatedEURoHSYes (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1503-33SLA_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1503-33SLA

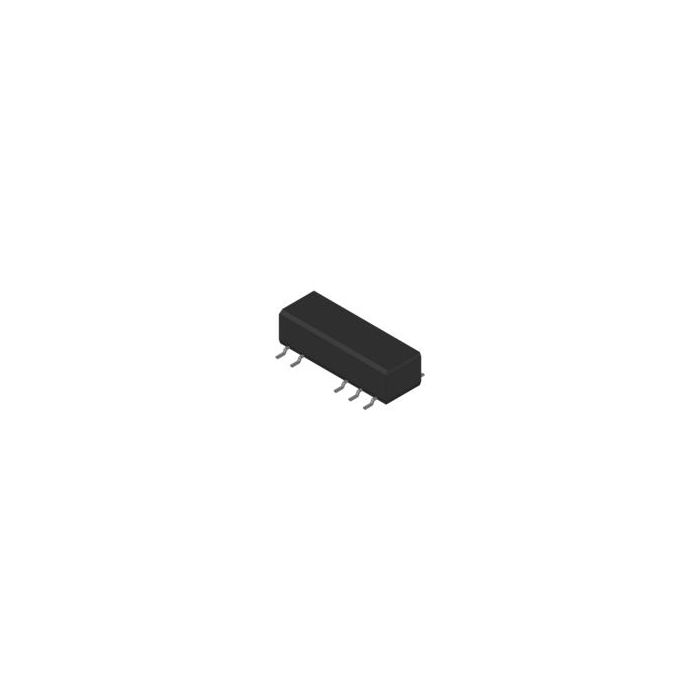

Conv DC-DC 7V to 40V Synchronous Step Down Single-Out 3.3V 2.5A 7-Pin SOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 8
  • PCNs 15
  • MaskPart AP150333SL%
  • IntroductionDate Jun 02, 2003

Parametry

  • Efficiency (%) 79(Typ)
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2.5
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 7
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 7 to 40
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 360
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 5000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 7V to 40V Synchronous Step Down Single-Out 3.3V 2.5A 7-Pin SOP T/R
