AP1502S7

ProducentDiodes IncorporatedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1502S7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1502S7

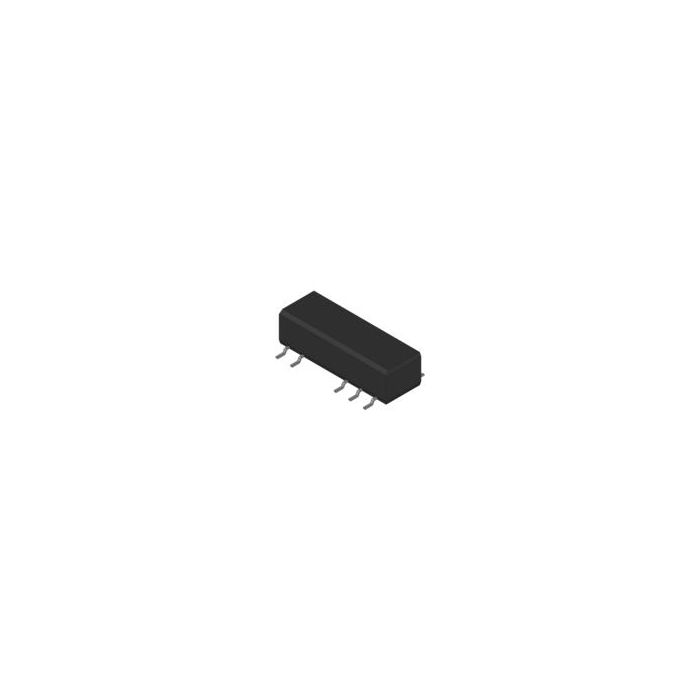

Conv DC-DC 4.5V to 20V Step Down Single-Out 1.2V to 12V 1A 7-Pin SOP Tube

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 13
  • PCNs 15
  • MaskPart AP1502S7%
  • IntroductionDate Jul 13, 2004

Parametry

  • Efficiency (%) 73(Typ)
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 20
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 20
  • Output Type Adjustable
  • Output Voltage (V) 1.2 to 12
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 250
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 6000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 20V Step Down Single-Out 1.2V to 12V 1A 7-Pin SOP Tube
