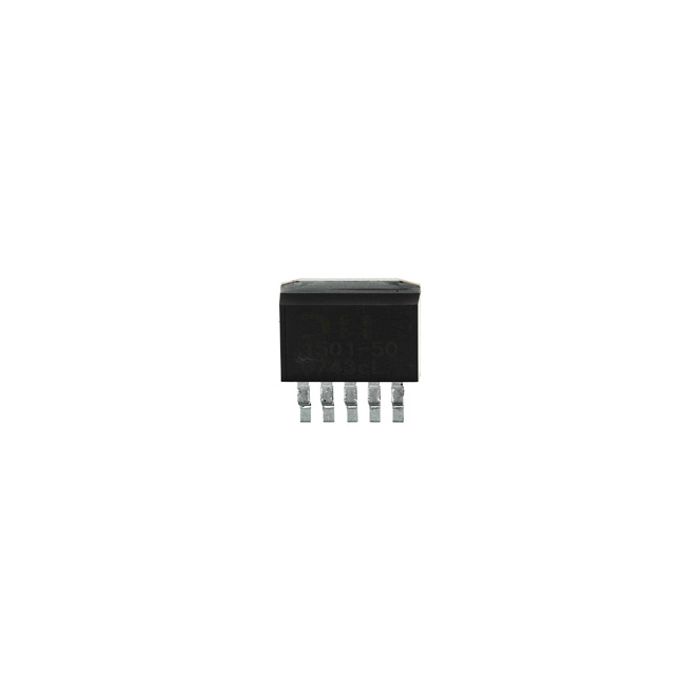

AP1501-50K5L-13

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP1501-50K5L-13_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP1501-50K5L-13

Conv DC-DC 4.5V to 40V Synchronous Step Down Single-Out 5V 3A 6-Pin(5+Tab) TO-263 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 134
  • PCNs 22
  • MaskPart AP150150K5L%
  • IntroductionDate May 15, 2003

Parametry

  • Efficiency (%) 80(Typ)
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -20
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 40
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 173
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 5000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 40V Synchronous Step Down Single-Out 5V 3A 6-Pin(5+Tab) TO-263 T/R
