ADUM7701-8BRIZ-RL

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADUM7701-8BRIZ-RL_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADUM7701-8BRIZ-RL

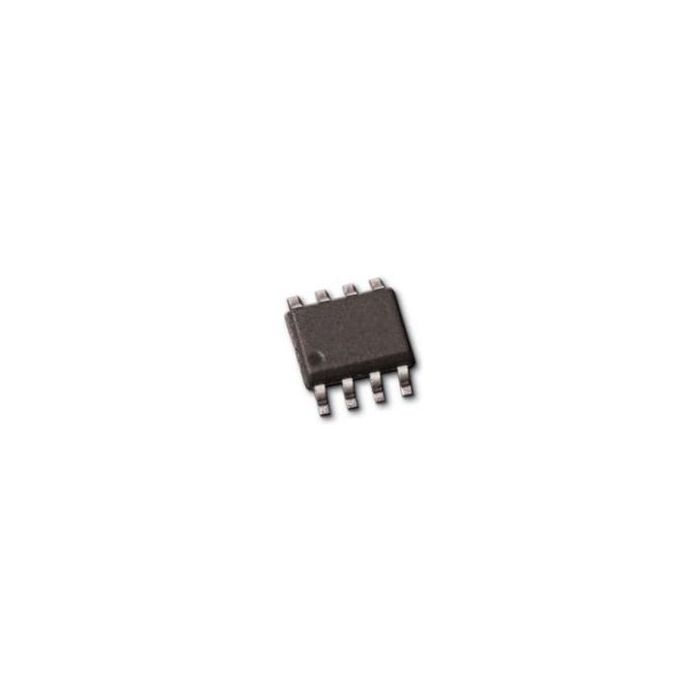

1-Channel Single ADC Delta-Sigma 16-bit Serial 8-Pin SOIC W T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 247
  • PCNs 7
  • MaskPart ADUM77018BRIZ%

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.99LSB
  • Digital Interface Type Serial
  • Digital Supply Support No
  • Full Scale Error ±0.2%FSR
  • Input Signal Type Pseudo-Differential
  • Input Type Voltage
  • Input Voltage ±0.32V
  • Integral Nonlinearity Error ±4LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 125
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.5
  • No Missing Codes (bit) 16
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 16bit
  • Sample and Hold No
  • Sampling Rate N/A
  • Signal to Noise Ratio 86dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade N/A
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 51
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Delta-Sigma 16-bit Serial 8-Pin SOIC W T/R
