ADUM6028-5BRIZ-RL

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADUM6028-5BRIZ-RL_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADUM6028-5BRIZ-RL

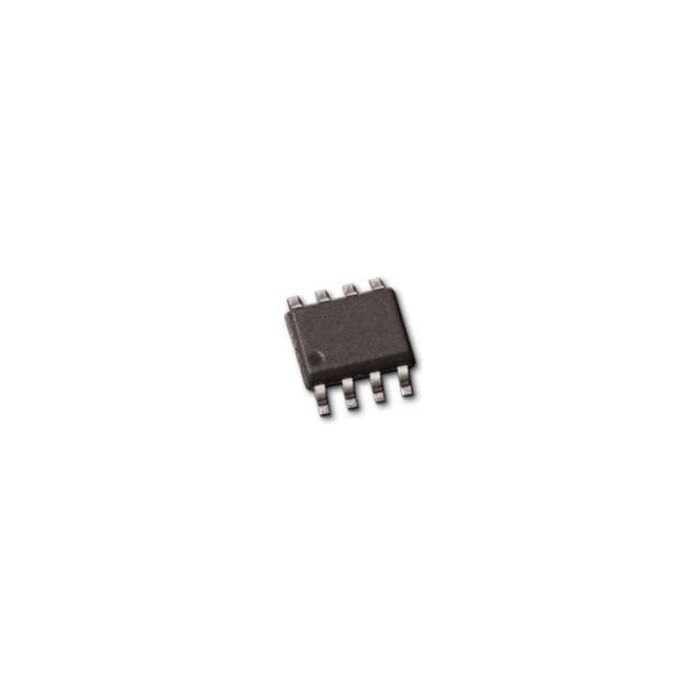

Module DC-DC 5VIN 1-OUT 5V/3.3V 0.06A 8-Pin SOIC W T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • PCNs 7
  • MaskPart ADUM60285BRIZ%

Parametry

  • Efficiency (%) 33(Typ)
  • Isolation Isolated
  • Line Regulation 2mV/V(Typ)
  • Load Regulation 5%
  • Maximum Input Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.06
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) N/A
  • Minimum Isolation Voltage 5000Vrms
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 1
  • On/Off Logic Negative
  • Output Type Fixed
  • Output Voltage (V) 5|3.3
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 180000(Typ)
  • Switching Regulator Yes
  • Type Step Down
  • Typical Input Voltage (V) 5
  • Typical Standby Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Module DC-DC 5VIN 1-OUT 5V/3.3V 0.06A 8-Pin SOIC W T/R
