ADUM4138WBRNZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADUM4138WBRNZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADUM4138WBRNZ

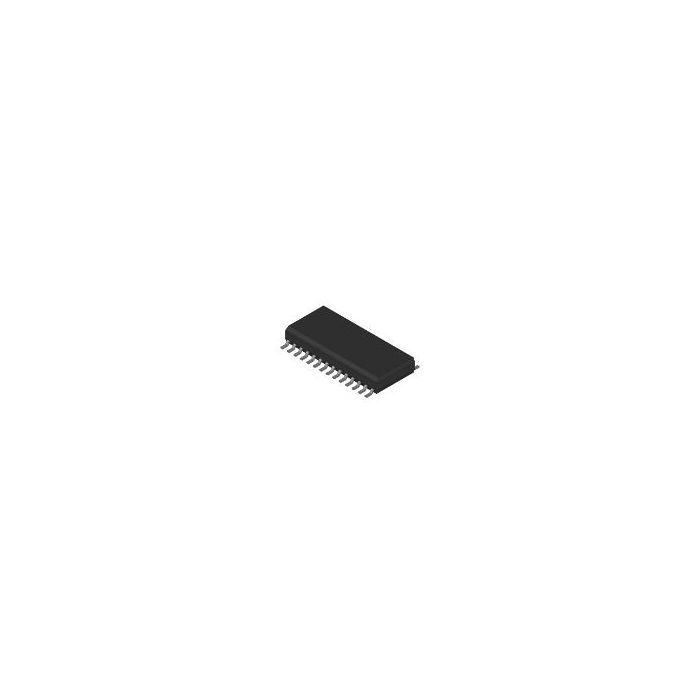

Driver 10V 6A 1-OUT High Side/Low Side Non-Inv Automotive 28-Pin SOIC W Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 14
  • Inventory 2
  • PCNs 7
  • MaskPart ADUM4138WBRNZ%

Parametry

  • Absolute Propagation Delay Time (ns) 130
  • Bridge Type N/A
  • Driver Configuration Non-Inverting
  • Driver Type High Side|Low Side
  • High and Low Sides Dependency Synchronous
  • Input Logic Compatibility N/A
  • Latch-Up Proof Yes
  • Maximum Fall Time (ns) N/A
  • Maximum Operating Frequency (kHz) 200(Typ)
  • Maximum Operating Supply Voltage (V) 25
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 2000
  • Maximum Propagation Delay Time (ns) 100(Typ)
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Delay Time (ns) N/A
  • Maximum Turn-On Delay Time (ns) N/A
  • Minimum Operating Supply Voltage (V) 12
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Drivers 1
  • Number of Outputs 1
  • Output Resistance (Ohm) 11.3|13.7
  • Peak Output Current (A) 6(Typ)
  • Reference Voltage (V) 10(Typ)
  • Special Features Under Voltage Lockout
  • Supplier Temperature Grade Automotive
  • Type IGBT|MOSFET
  • Typical Input High Threshold Voltage (V) 2.5(Min)
  • Typical Input Low Threshold Voltage (V) 0.9(Max)
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Driver 10V 6A 1-OUT High Side/Low Side Non-Inv Automotive 28-Pin SOIC W Tube
