ADUM4122ARIZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADUM4122ARIZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADUM4122ARIZ

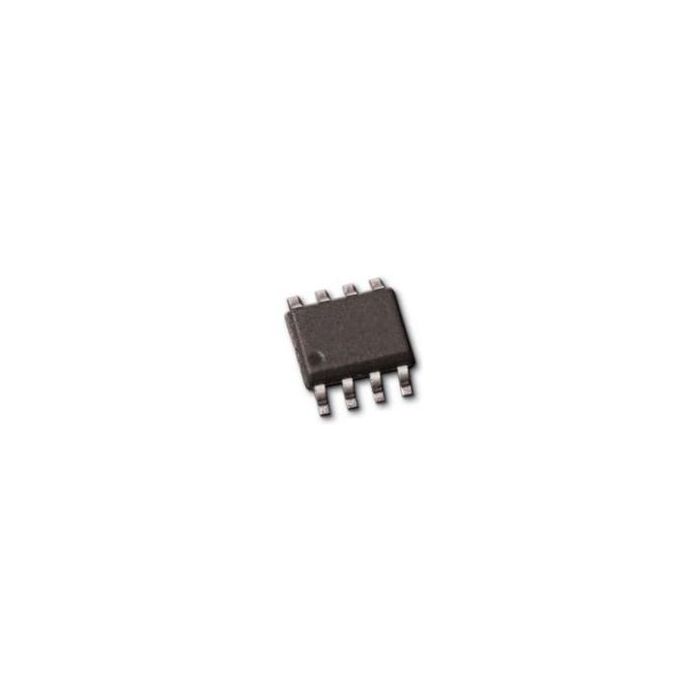

Driver 2A 2-OUT High Side/Low Side Non-Inv 8-Pin SOIC W Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 3
  • PCNs 7
  • MaskPart ADUM4122ARIZ%
  • IntroductionDate Feb 14, 2019

Parametry

  • Absolute Propagation Delay Time (ns) 48
  • Bridge Type N/A
  • Driver Configuration Non-Inverting
  • Driver Type High Side|Low Side
  • High and Low Sides Dependency Synchronous
  • Input Logic Compatibility CMOS
  • Latch-Up Proof No
  • Maximum Fall Time (ns) 17(Typ)
  • Maximum Operating Frequency (kHz) N/A
  • Maximum Operating Supply Voltage (V) 6.5|35
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 1520
  • Maximum Propagation Delay Time (ns) 30(Typ)
  • Maximum Rise Time (ns) 17(Typ)
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 1.5(Typ)|2(Typ)
  • Maximum Turn-Off Delay Time (ns) N/A
  • Maximum Turn-On Delay Time (ns) N/A
  • Minimum Operating Supply Voltage (V) 3.3|4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Drivers 2
  • Number of Outputs 2
  • Output Resistance (Ohm) 1.1|1.4
  • Peak Output Current (A) 2(Typ)
  • Reference Voltage (V) N/A
  • Special Features Under Voltage Lockout
  • Supplier Temperature Grade N/A
  • Type IGBT|MOSFET
  • Typical Input High Threshold Voltage (V) N/A
  • Typical Input Low Threshold Voltage (V) N/A
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Driver 2A 2-OUT High Side/Low Side Non-Inv 8-Pin SOIC W Tube
