ADuM3070ARQZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADUM3070ARQZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADuM3070ARQZ

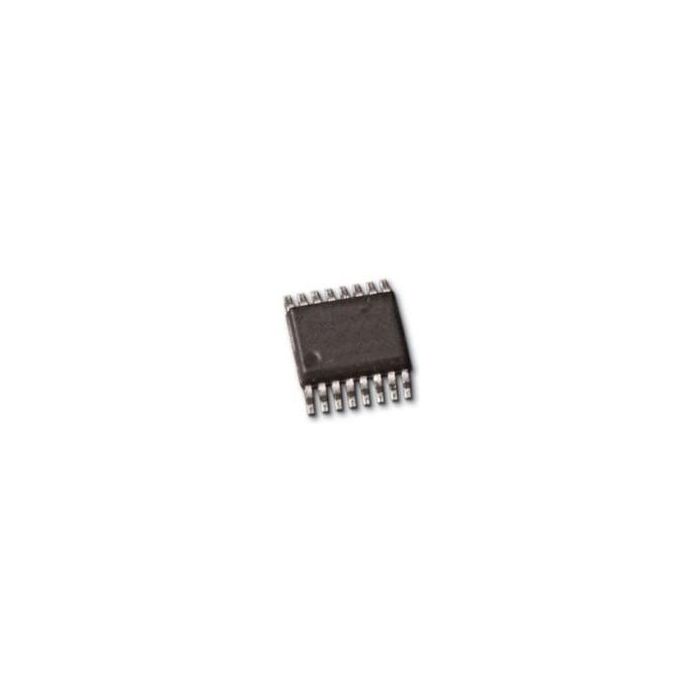

Digital Isolator 1-CH 16-Pin QSOP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 8
  • PCNs 8
  • MaskPart ADuM3070ARQZ%
  • IntroductionDate May 03, 2012

Parametry

  • Coupling Type Magnetic Coupling
  • Forward/Reverse Channels 1/0
  • Maximum Data Rate N/A
  • Maximum Fall Time (ns) N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 105
  • Maximum Output Current Drive (mA) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Skew (ns) N/A
  • Maximum Propagation Delay Time (tPHL) (ns) N/A
  • Maximum Propagation Delay Time (tPLH) (ns) N/A
  • Maximum Pulse Width Distortion (ns) N/A
  • Maximum Quiescent Supply Current (mA) 5
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Working Insulation Voltage 560Vp
  • Minimum Common Mode Rejection (kV/us) 25
  • Minimum Isolation Voltage (Vrms) 2500
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Minimum Pulse Width (ns) N/A
  • Minimum Storage Temperature (°C) -55
  • Number of Channels per Chip 1
  • Output Type N/A
  • Supplier Temperature Grade Industrial
  • Type N/A

Więcej informacji

Do pobrania Download
Main description Digital Isolator 1-CH 16-Pin QSOP Tube
