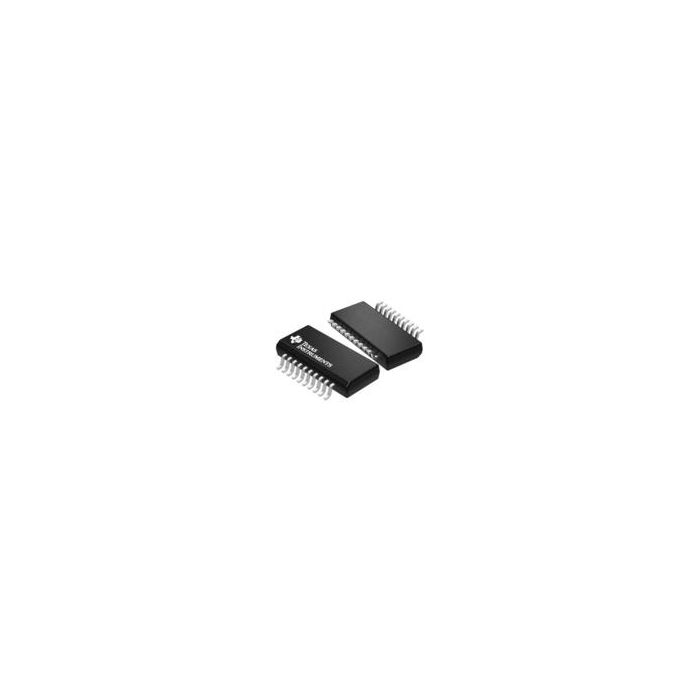

ADS8344EBG4
| Do pobrania | Download |
|---|---|
| Main description | 8-Channel Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube |
8-Channel Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 373
- Inventory 1
- PCNs 46
- MaskPart ADS8344EBG4%
- IntroductionDate Jun 01, 2005
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±2LSB
- Digital Interface Type Serial (4-Wire)
- Digital Supply Support No
- Full Scale Error ±0.024%FSR
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage 2.7V/5V
- Integral Nonlinearity Error 8LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.25
- Maximum Power Dissipation (mW) 10
- Maximum Single Supply Voltage (V) 5.25
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- No Missing Codes (bit) 15
- Number of ADCs 1
- Number of Input Channels 8|4
- Polarity of Input Voltage Unipolar
- Resolution 16bit
- Sample and Hold Yes
- Sampling Rate 100ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 3.3|5
- Voltage Reference External
- Voltage Supply Source Single
