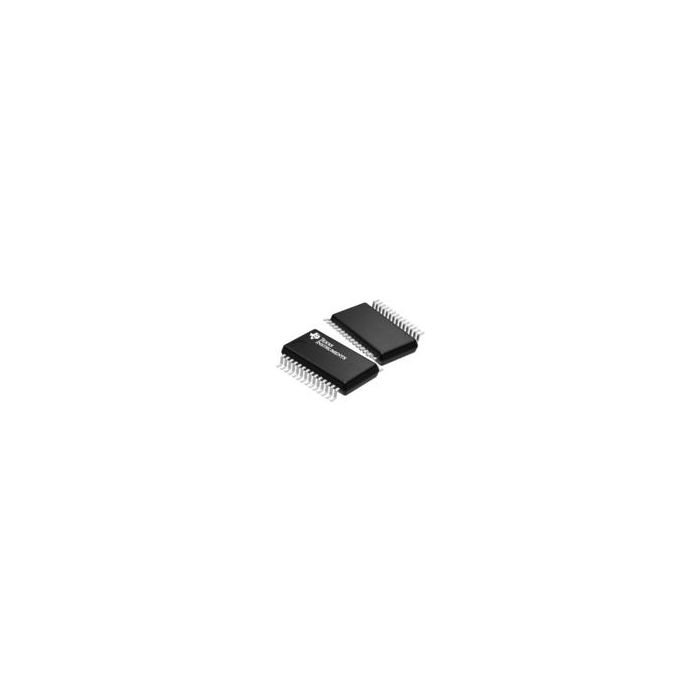

ADS1256IDBR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADS1256IDBR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / ADS1256IDBR

8-Channel Single ADC Delta-Sigma 30ksps 24-bit Serial 28-Pin SSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 6
  • PCNs 60
  • GIDEP-Alerts 3
  • MaskPart ADS1256IDB%
  • IntroductionDate Jun 01, 2005

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±2LSB
  • Digital Interface Type Serial (2-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±0.03%FSR(Typ)
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage ±5V
  • Integral Nonlinearity Error ±0.001%FSR
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25/3.6
  • Maximum Power Dissipation (mW) 57
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75/1.8
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 24
  • Number of ADCs 1
  • Number of Input Channels 8|4
  • Polarity of Input Voltage Bipolar
  • Resolution 24bit
  • Sample and Hold No
  • Sampling Rate 30ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade N/A
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 38
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC Delta-Sigma 30ksps 24-bit Serial 28-Pin SSOP T/R
