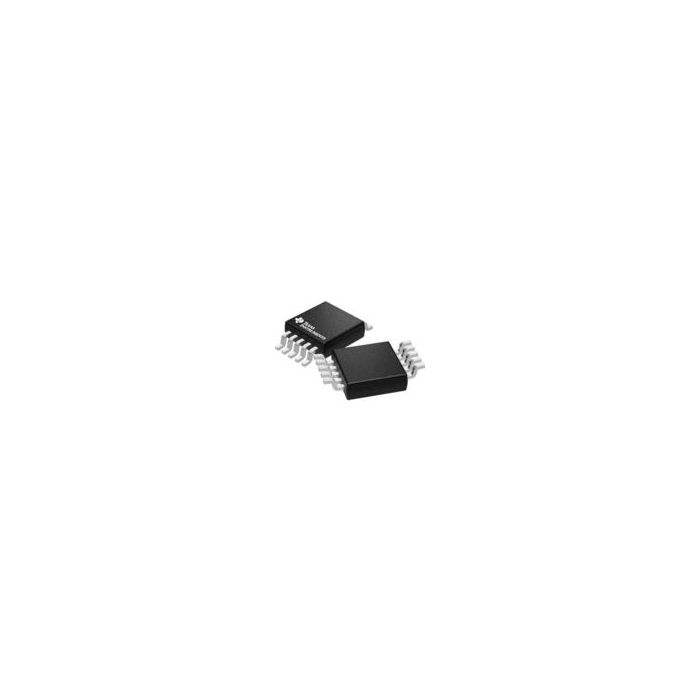

ADS1112IDGSR
| Do pobrania | Download |
|---|---|
| Main description | 3-Channel Single ADC Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R |
3-Channel Single ADC Delta-Sigma 240sps 16-bit Serial 10-Pin VSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 22
- Inventory 5
- PCNs 56
- GIDEP-Alerts 1
- MaskPart ADS1112IDGS%
- IntroductionDate Dec 01, 2004
- AliasParts ADS1112IDGSRG4
Parametry
- Architecture Delta-Sigma
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Serial (2-Wire, I2C)
- Digital Supply Support No
- Full Scale Error 0.4%FSR
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage ±2.048V
- Integral Nonlinearity Error ±0.01%FSR
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.5
- Maximum Power Dissipation (mW) 1.75
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- No Missing Codes (bit) 16
- Number of ADCs 1
- Number of Input Channels 3|2
- Polarity of Input Voltage Bipolar
- Resolution 16bit
- Sample and Hold No
- Sampling Rate 240sps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 1.2
- Typical Single Supply Voltage (V) 5
- Voltage Reference Internal
- Voltage Supply Source Single
