ADS1100A0IDBVRG4
| Do pobrania | Download |
|---|---|

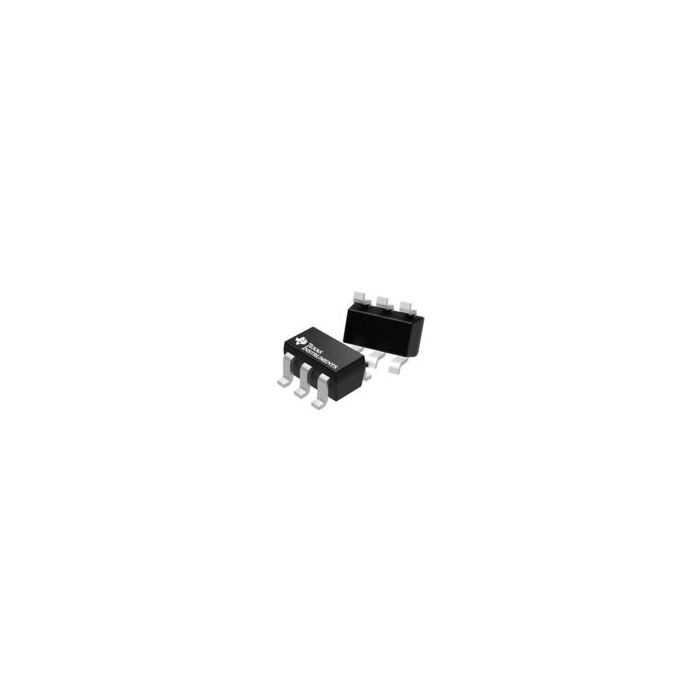

| Main description | 1-Channel Single ADC Delta-Sigma 128sps 16-bit Serial 6-Pin SOT-23 T/R |
1-Channel Single ADC Delta-Sigma 128sps 16-bit Serial 6-Pin SOT-23 T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 34
- Inventory 7*
- PCNs 43
- MaskPart ADS1100A0IDBV%G4
- IntroductionDate Sep 01, 2004
Parametry
- Architecture Delta-Sigma
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Serial (2-Wire, I2C)
- Digital Supply Support No
- Full Scale Error 0.1%FSR
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage ±5V
- Integral Nonlinearity Error ±0.0125%FSR
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.5
- Maximum Power Dissipation (mW) 0.75
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- Minimum Storage Temperature (°C) -60
- No Missing Codes (bit) 16
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Bipolar
- Resolution 16bit
- Sample and Hold No
- Sampling Rate 128sps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 0.45
- Typical Single Supply Voltage (V) 5
- Voltage Reference Supply
- Voltage Supply Source Single
