ADP1875ARQZ-0.3-R7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADP1875ARQZ-0.3-R7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADP1875ARQZ-0.3-R7

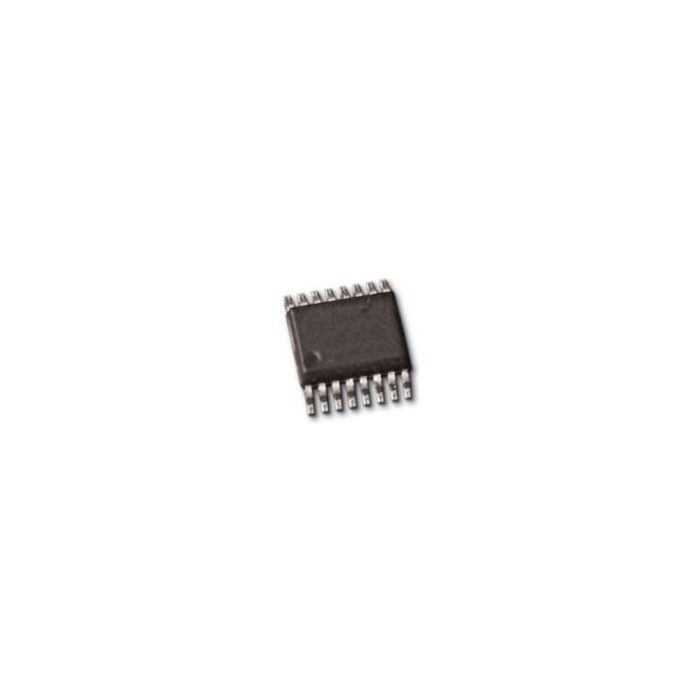

DC/DC Cntrlr Single-OUT Step Down 16-Pin QSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 187
  • Inventory 1
  • PCNs 7
  • MaskPart ADP1875ARQZ0.3%
  • IntroductionDate Feb 17, 2011

Parametry

  • Control Method PWM
  • Maximum Input Voltage (V) 20
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) N/A
  • Minimum Input Voltage (V) 2.95
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) N/A
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) N/A
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.95 to 20
  • Output Voltage (V) 0.6(Min)
  • Programmability No
  • Supplier Temperature Grade Industrial
  • Synchronous Clock No
  • Synchronous Rectifier Yes
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 0.7/0.7
  • Typical Gate Driver Pull Up Resistance (Ohm) 1.6/2.25
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A
  • Typical Quiescent Current (mA) 1.1
  • Typical Switching Frequency (kHz) 300

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 16-Pin QSOP T/R
