ADP1822ARQZ-R7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADP1822ARQZ-R7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADP1822ARQZ-R7

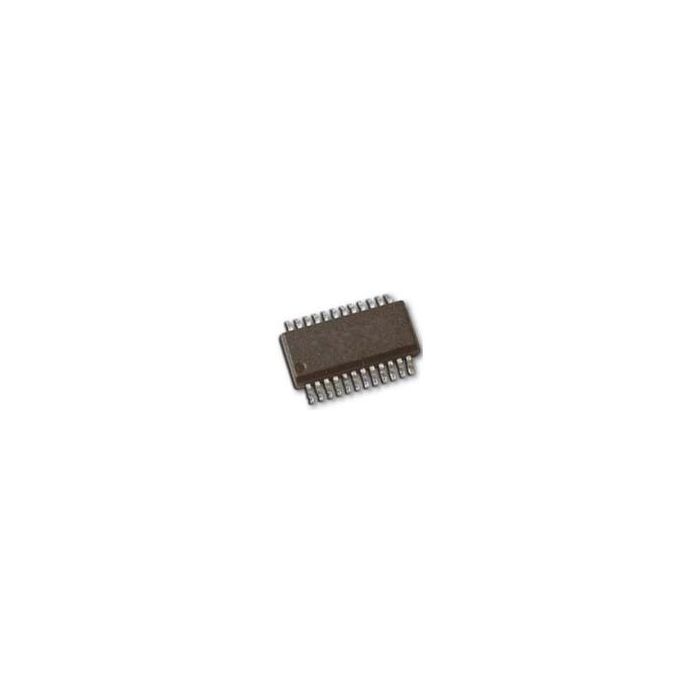

DC/DC Cntrlr Single-OUT Step Down 1200kHz 24-Pin QSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 159
  • Inventory 1
  • PCNs 10
  • MaskPart ADP1822ARQZ%
  • IntroductionDate Jul 01, 2005

Parametry

  • Maximum Input Voltage (V) 24
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) 1200
  • Minimum Input Voltage (V) 1
  • Minimum Operating Temperature (°C) -40
  • Minimum Switching Frequency (kHz) 300
  • Number of Outputs 1
  • Operating Supply Voltage (V) 1 to 24
  • Output Voltage (V) 0.6 to 20.4
  • Supplier Temperature Grade Industrial
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 1200kHz 24-Pin QSOP T/R
