ADM6711RAKSZ-REEL7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADM6711RAKSZ-REEL7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADM6711RAKSZ-REEL7

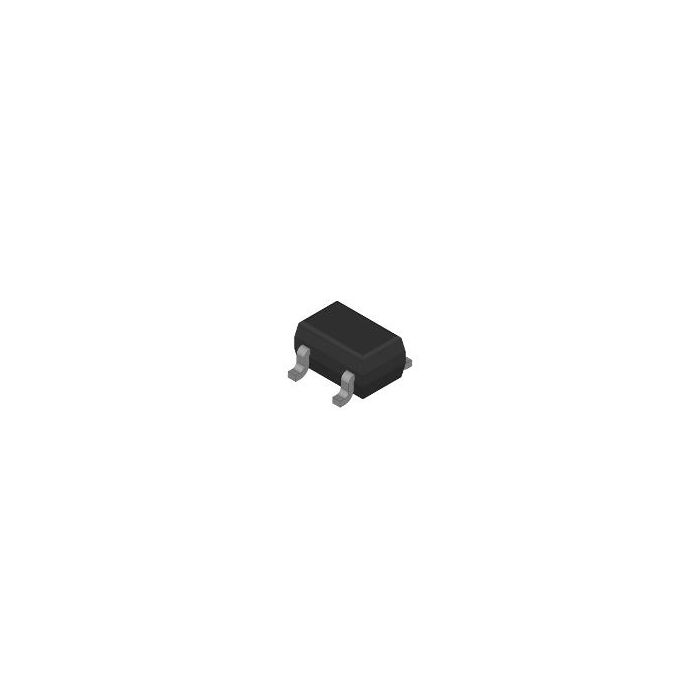

Processor Supervisor 2.63V 1 Active Low/Push-Pull Automotive 4-Pin SC-70 T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1938
  • Inventory 3
  • PCNs 8
  • MaskPart ADM6711RAKSZ%
  • IntroductionDate Aug 01, 2003

Parametry

  • Battery Backup Switching No
  • Chip Enable Signals No
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Reset Active Time (ms) 640
  • Maximum Reset Threshold Voltage (V) 2.66
  • Maximum Supply Current (uA) 60
  • Minimum Operating Supply Voltage (V) 1
  • Minimum Operating Temperature (°C) -40
  • Minimum Reset Threshold Voltage (V) 2.59
  • Monitored Voltage (V) 2.5|3|3.3|5
  • Number of Supervisors 1
  • Output Driver Active Low/Push-Pull
  • Power Fail Detection No
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) N/A
  • Typical Reset Threshold Voltage (V) 2.63
  • Watchdog Timer No

Więcej informacji

Do pobrania Download
Main description Processor Supervisor 2.63V 1 Active Low/Push-Pull Automotive 4-Pin SC-70 T/R
