ADGS1408BCPZ-RL7
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplxer Single 8:1 24-Pin LFCSP EP T/R |

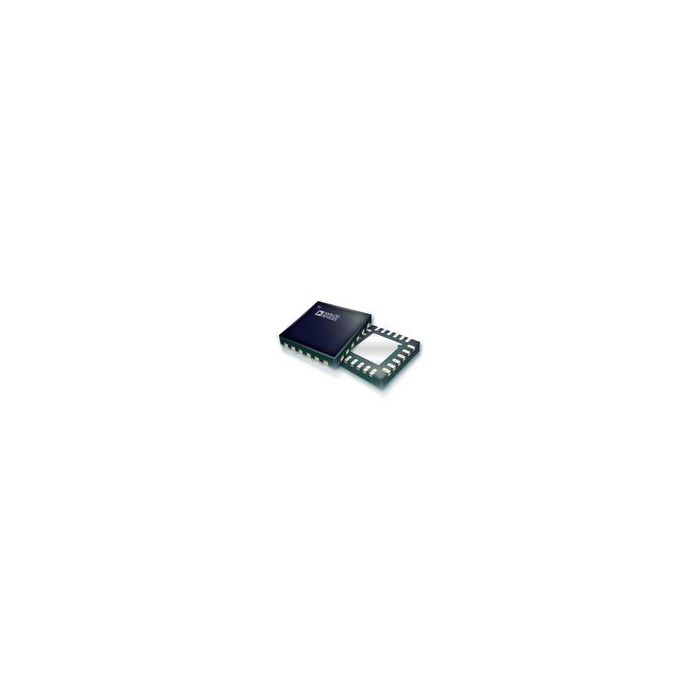

Analog Multiplxer Single 8:1 24-Pin LFCSP EP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 3*
- PCNs 7
- MaskPart ADGS1408BCPZ%
Parametry
- Chip Enable Signals Yes
- Configuration Single 8:1
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±16.5
- Maximum Frequency (25°C) @ Vcc (MHz) 36@12V|40@±5V|60@±15V
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 9@±5V
- Maximum On Resistance Range (Ohm) 5 to 10
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 185@±15V|280@12V|440@±5V
- Maximum Single Supply Voltage (V) 20
- Maximum Supply Current (mA) 0.001@5.5V/-0.02@-5.5V@-45C to 125C
- Maximum Turn-Off Time (ns) 330@±5V
- Maximum Turn-On Time (ns) 365@±5V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 5
- Multiplexer Architecture 8:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplxer
- Typical Dual Supply Voltage (V) ±5|±15
- Typical Single Supply Voltage (V) 12
- Typical Supply Current (mA) 0.000002@5.5V/-0.014@-5.5V
