ADG774BRQZ-REEL
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
- SKU
- ADG774BRQZ-REEL_ANALOG_DEVICES
0,00 zł
Opis / ADG774BRQZ-REEL

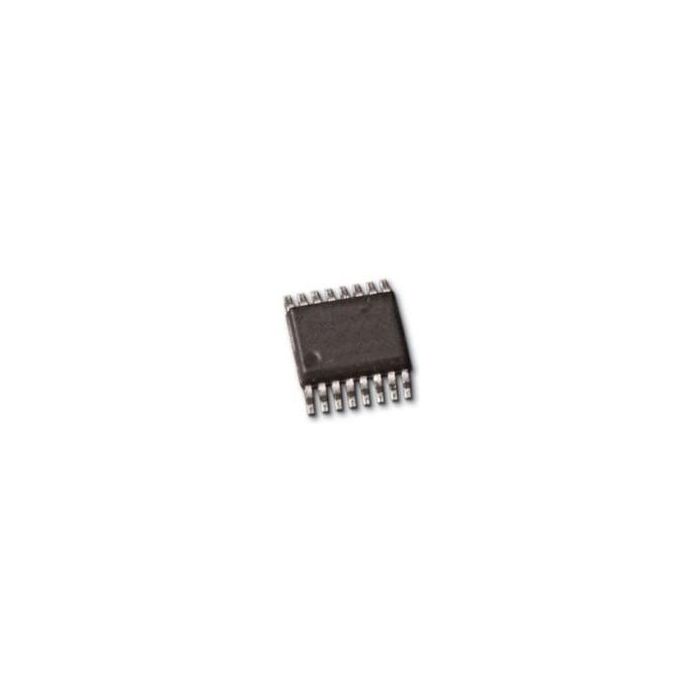

Analog Multiplexer Quad 2:1 Automotive 16-Pin QSOP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 97
- Inventory 1
- PCNs 8
- MaskPart ADG774BRQZ%
- IntroductionDate Nov 10, 1997
Parametry
- Chip Enable Signals Yes
- Configuration Quad 2:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) 16
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 240(Typ)@5V|240(Typ)@3V@-40C to 125C
- Maximum High Level Output Current (mA) 100
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 9@3V
- Maximum On Resistance Range (Ohm) 5 to 10
- Maximum Power Dissipation (mW) 566
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/A
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 11@3V@-40C to 125C
- Maximum Turn-On Time (ns) 21@3V@-40C to 125C
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) N/A
- Multiplexer Architecture 2:1
- Number of Channels per Chip 4
- Number of Inputs per Chip 8
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Automotive
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3.3/5
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Quad 2:1 Automotive 16-Pin QSOP T/R |
