ADG774ABRQZ-REEL

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ADG774ABRQZ-REEL_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / ADG774ABRQZ-REEL

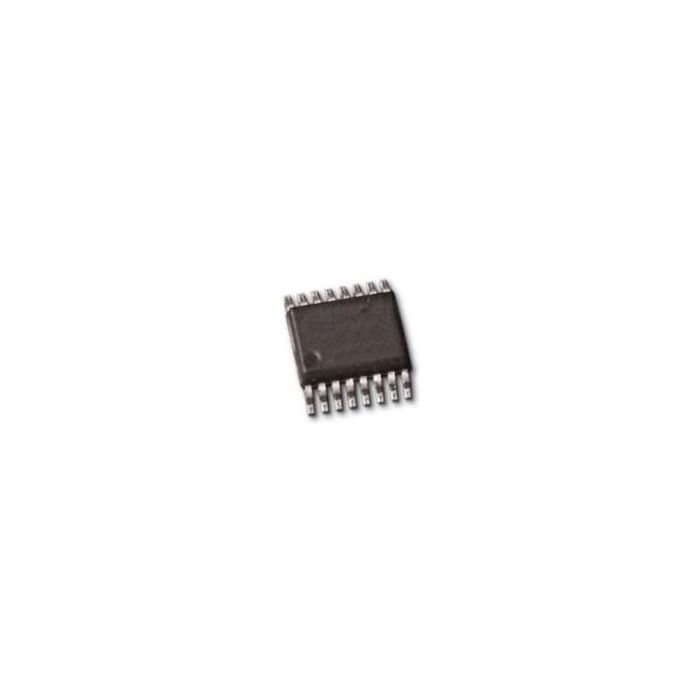

Analog Multiplexer Quad 2:1 16-Pin QSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 103
  • Inventory 1
  • PCNs 8
  • MaskPart ADG774ABRQZ%
  • IntroductionDate Jun 07, 2001

Parametry

  • Chip Enable Signals Yes
  • Configuration Quad 2:1
  • Function General
  • Input Signal Type Single
  • Logic Family N/A
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 400(Typ)@5V|400(Typ)@3V@-40C to 85C
  • Maximum High Level Output Current (mA) 100
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 6@3V
  • Maximum On Resistance Range (Ohm) 5 to 10
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Time (ns) 8@3V@-40C to 85C
  • Maximum Turn-On Time (ns) 14@3V@-40C to 85C
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) N/A
  • Minimum Storage Temperature (°C) -65
  • Multiplexer Architecture 2:1
  • Number of Channels per Chip 4
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 4
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Industrial
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3|5
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Quad 2:1 16-Pin QSOP T/R
