ADG659YCPZ
| Do pobrania | Download |
|---|---|

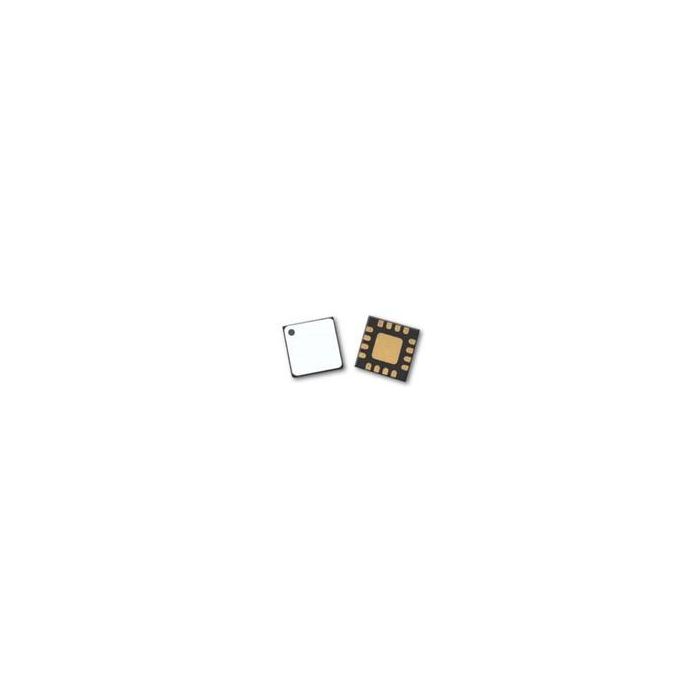

| Main description | Analog Multiplexer Dual 4:1 Automotive 16-Pin LFCSP EP Tray |
Analog Multiplexer Dual 4:1 Automotive 16-Pin LFCSP EP Tray
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 308
- Inventory 4
- PCNs 14
- MaskPart ADG659YCPZ%
- IntroductionDate Nov 25, 2002
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±6
- Maximum Frequency (25°C) @ Vcc (MHz) 400(Typ)@±5V|330(Typ)@5V|300(Typ)@3.6V
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 300@3.6V
- Maximum On Resistance Range (Ohm) 250 to 400
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 115@±5V|200@5V|370@3.6V
- Maximum Single Supply Voltage (V) 12
- Maximum Supply Current (mA) 0.001@5.5V@-40C to 125C
- Maximum Turn-Off Time (ns) 80@3.6V
- Maximum Turn-On Time (ns) 370@3.6V
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 8
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Automotive
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±5
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.00001@5.5V
