ADG633YCPZREEL7
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Triple SPDT Automotive 16-Pin LFCSP EP T/R |

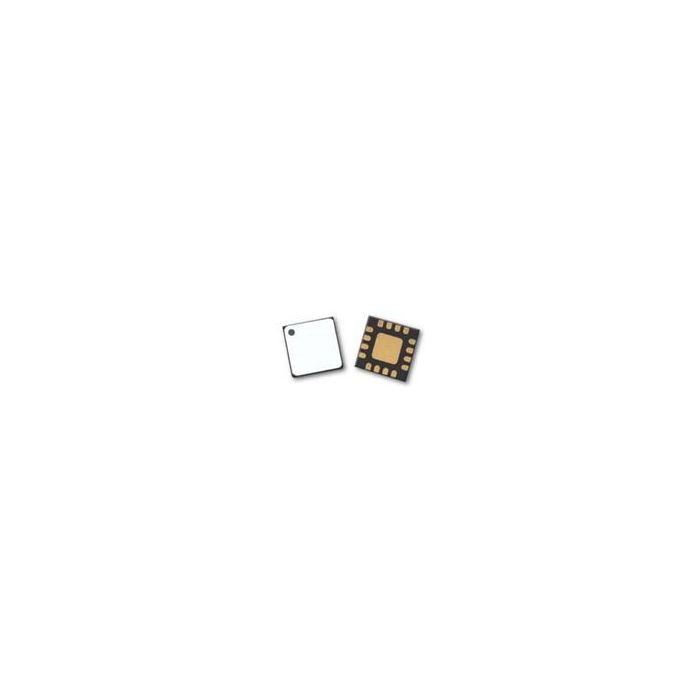

Analog Switch Triple SPDT Automotive 16-Pin LFCSP EP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 148
- Inventory 5
- PCNs 13
- MaskPart ADG633YCPZ%
- IntroductionDate Mar 03, 2003
Parametry
- Chip Enable Signals Yes
- Configuration Triple SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±6
- Maximum Frequency (25°C) @ Vcc (MHz) 500(Typ)@3.6V|520(Typ)@5V|580(Typ)@±5V
- Maximum High Level Output Current (mA) 20
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 300@3.6V
- Maximum On Resistance Range (Ohm) 250 to 400
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 90@±5V|150@5V|300@2.7V
- Maximum Single Supply Voltage (V) 12
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 40@±5V
- Maximum Turn-On Time (ns) 310@3.6V
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 3
- Number of Inputs per Chip 3
- Number of Outputs per Chip 6
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade Industrial
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±3|±5
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) 0.00001@5.5V
