ADG5436FBCPZ-RL7

Opis / ADG5436FBCPZ-RL7

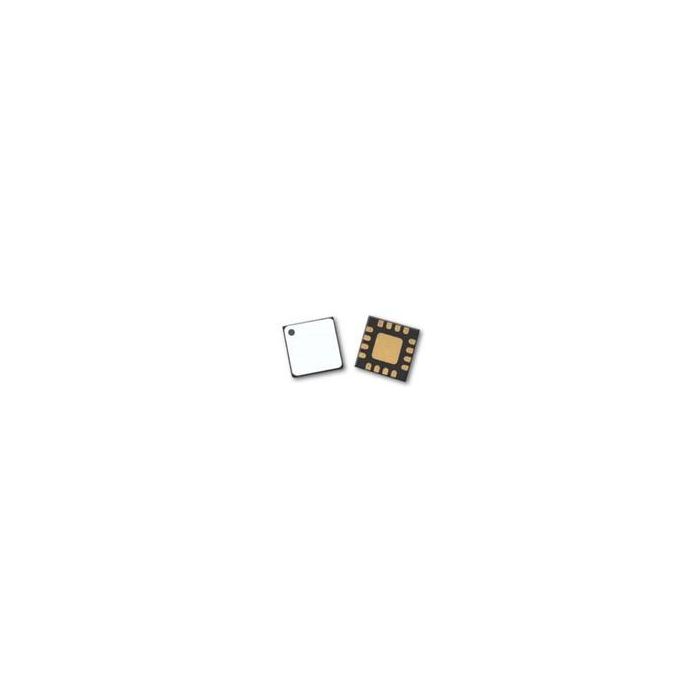

Analog Switch Dual SPDT 16-Pin LFCSP EP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Dual SPDT
Function General
Input Signal Type Single
Latch-Up Proof Yes
Logic Family N/A
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 152(Typ)@12V|169(Typ)@±15V|171(Typ)@±20V|173(Typ)@36V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 24.5@10.8V
Maximum On Resistance Range (Ohm) 10 to 25
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) 540@±15V|540@±20V|540@36V|545@12V
Maximum Single Supply Voltage (V) 44
Maximum Storage Temperature (°C) 150
Maximum Supply Current (mA) 1.2@16.5V/-0.65@-16.5V
Maximum Turn-Off Time (ns) 230@12V
Maximum Turn-On Time (ns) 535@±20V
Minimum Dual Supply Voltage (V) ±5
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 8
Minimum Storage Temperature (°C) -65
Multiplexer Architecture N/R
Number of Channels per Chip 2
Number of Inputs per Chip 2
Number of Outputs per Chip 4
Output Signal Type Single
Polarity Non-Inverting
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) 35
Special Features Break-Before-Make
Supplier Temperature Grade N/A
Switch Architecture SPDT
Switch Control Logic Active Low/High
Switch Normal Position NO/NC
Type Analog Switch
Typical Dual Supply Voltage (V) ±15|±20
Typical Single Supply Voltage (V) 12|36
Typical Supply Current (mA) 0.9@16.5V/-0.5@-16.5V

Więcej informacji

Do pobrania	Download
Main description	Analog Switch Dual SPDT 16-Pin LFCSP EP T/R
