ADG5421BRMZ-RL7

Opis / ADG5421BRMZ-RL7

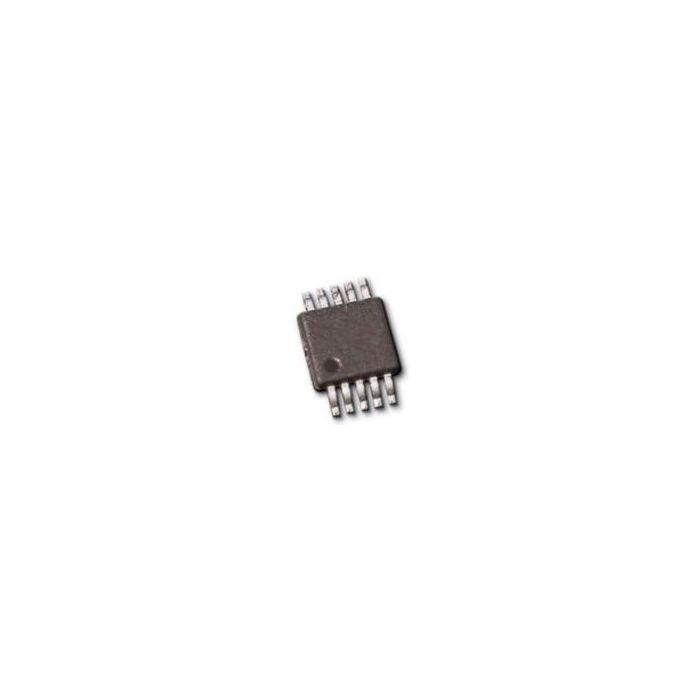

Analog Switch Dual SPST 10-Pin MSOP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Dual SPST
Function General
Input Signal Type Single
Latch-Up Proof Yes
Logic Family N/A
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 250(Typ)@20V|250(Typ)@±15V|260(Typ)@36V|290(Typ)@12V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 30@10.8V
Maximum On Resistance Range (Ohm) 25 to 35
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) N/A
Maximum Single Supply Voltage (V) 40
Maximum Storage Temperature (°C) 150
Maximum Supply Current (mA) -0.001@-16.5V@-40C to 125C/0.055@16.5V
Maximum Turn-Off Time (ns) 235@12V
Maximum Turn-On Time (ns) 370@12V
Minimum Dual Supply Voltage (V) ±9
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 9
Minimum Storage Temperature (°C) -65
Multiplexer Architecture N/R
Number of Channels per Chip 2
Number of Inputs per Chip 2
Number of Outputs per Chip 2
Output Signal Type Single
Polarity Non-Inverting
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) N/A
Special Features N/A
Supplier Temperature Grade N/A
Switch Architecture SPST
Switch Control Logic Active High
Switch Normal Position NO
Type Analog Switch
Typical Dual Supply Voltage (V) ±15|±20
Typical Single Supply Voltage (V) 12|36
Typical Supply Current (mA) 0.045@16.5V/-0.000001@-16.5V

Więcej informacji

Do pobrania	Download
Main description	Analog Switch Dual SPST 10-Pin MSOP T/R
