ADG5412WBCPZ-REEL7

Opis / ADG5412WBCPZ-REEL7

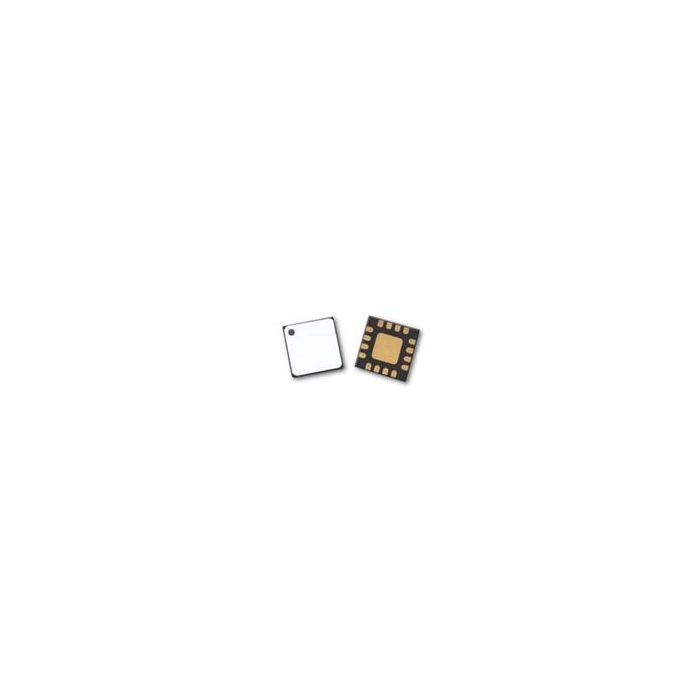

Analog Switch Quad SPST Automotive 16-Pin LFCSP EP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Quad SPST
Function General
Input Signal Type Single
Latch-Up Proof Yes
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 160(Typ)@±20V|167(Typ)@±15V|174(Typ)@36V|180(Typ)@12V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 10.6@32.4V
Maximum On Resistance Range (Ohm) 10 to 25
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) N/A
Maximum Single Supply Voltage (V) 40
Maximum Supply Current (mA) 0.07@16.5V/-0.001@-16.5V
Maximum Turn-Off Time (ns) 120(Typ)@15V
Maximum Turn-On Time (ns) 170(Typ)@15V
Minimum Dual Supply Voltage (V) ±9
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 9
Multiplexer Architecture N/R
Number of Channels per Chip 4
Number of Inputs per Chip 4
Number of Outputs per Chip 4
Output Signal Type Single
Polarity Non-Inverting
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) N/A
Special Features N/A
Supplier Temperature Grade Automotive
Switch Architecture SPST
Switch Control Logic Active High
Switch Normal Position NO
Type Analog Switch
Typical Dual Supply Voltage (V) ±15|±20
Typical Single Supply Voltage (V) 12|36
Typical Supply Current (mA) 0.045@16.5V/-0.000001@-16.5V

Więcej informacji

Do pobrania	Download
Main description	Analog Switch Quad SPST Automotive 16-Pin LFCSP EP T/R
