ADG5404FBCPZ-RL7

Opis / ADG5404FBCPZ-RL7

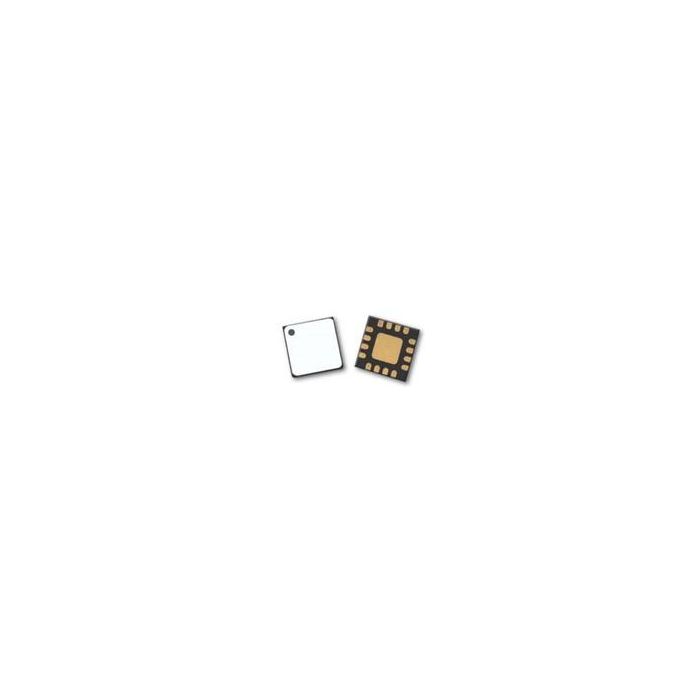

Analog Multiplexer Single 4:1 16-Pin LFCSP EP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Single 4:1
Function General
Input Signal Type Single
Latch-Up Proof Yes
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 90(Typ)@12V|108(Typ)@±15V|108(Typ)@36V|110(Typ)@±20V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 24.5@36V
Maximum On Resistance Range (Ohm) 10 to 25
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) 540@±15V|540@±20V|540@36V|545@12V
Maximum Single Supply Voltage (V) 44
Maximum Supply Current (mA) 1.2@16.5V|-0.65@-16.5V
Maximum Turn-Off Time (ns) 255@12V
Maximum Turn-On Time (ns) 535@±15V
Minimum Dual Supply Voltage (V) ±5
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 8
Multiplexer Architecture 4:1
Number of Channels per Chip 1
Number of Inputs per Chip 4
Number of Outputs per Chip 1
Output Signal Type Single
Polarity N/A
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) 35
Special Features Break-Before-Make
Supplier Temperature Grade N/A
Switch Architecture N/R
Switch Control Logic N/R
Switch Normal Position N/R
Type Analog Multiplexer
Typical Dual Supply Voltage (V) ±20
Typical Single Supply Voltage (V) 12
Typical Supply Current (mA) 0.9@16.5V|-0.5@-16.5V
