ADG5404BCPZ-REEL7

Opis / ADG5404BCPZ-REEL7

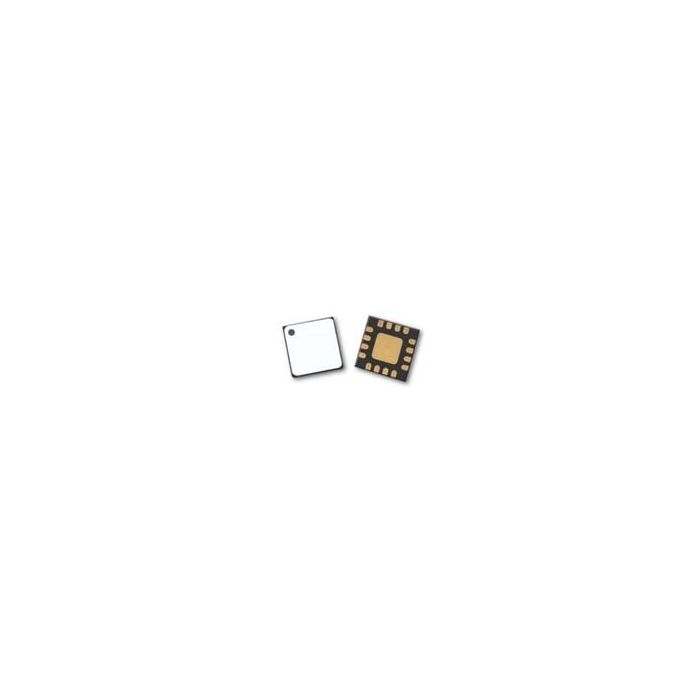

Analog Multiplexer Single 4:1 Automotive 16-Pin LFCSP EP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Single 4:1
Function General
Input Signal Type Single
Logic Family N/A
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 43(Typ)@12V|47(Typ)@36V|53(Typ)@±15V|54(Typ)@±20V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 22@12V
Maximum On Resistance Range (Ohm) 10 to 25
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) 224@±20V|242@±15V|256@36V|358@12V
Maximum Single Supply Voltage (V) 40
Maximum Storage Temperature (°C) 150
Maximum Supply Current (mA) -0.001@-16.5V@-40C to 125C/0.055@16.5V
Maximum Turn-Off Time (ns) 172@36V
Maximum Turn-On Time (ns) 339@12V
Minimum Dual Supply Voltage (V) ±9
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 9
Minimum Storage Temperature (°C) -65
Multiplexer Architecture 4:1
Number of Channels per Chip 1
Number of Inputs per Chip 4
Number of Outputs per Chip 1
Output Signal Type Single
Polarity N/A
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) 35
Special Features Break-Before-Make
Supplier Temperature Grade N/A
Switch Architecture N/R
Switch Control Logic N/R
Switch Normal Position N/R
Type Analog Multiplexer
Typical Dual Supply Voltage (V) ±15|±20
Typical Single Supply Voltage (V) 12|36
Typical Supply Current (mA) 0.045@16.5V/-0.000001@-16.5V
