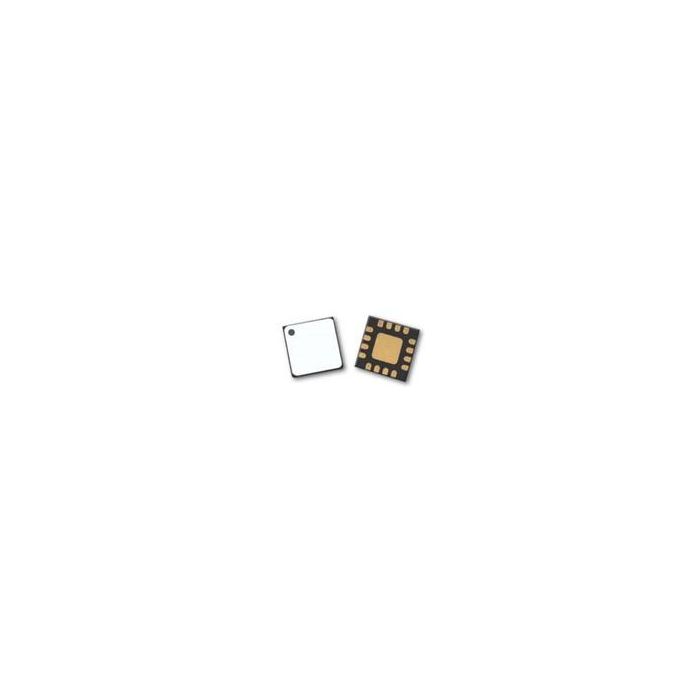

ADG5209FBCPZ-RL7

Opis / ADG5209FBCPZ-RL7

Analog Multiplexer Dual 4:1 Automotive 16-Pin LFCSP EP T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Dual 4:1
Function General
Input Signal Type Single
Latch-Up Proof Yes
Logic Family N/A
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±22
Maximum Frequency (25°C) @ Vcc (MHz) 270(Typ)@12V|290(Typ)@±15V|290(Typ)@±20V|300(Typ)@36V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 690@12V
Maximum On Resistance Range (Ohm) 400 to 1000
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) 200@12V|230@±15V|230@36V|245@±20V
Maximum Single Supply Voltage (V) 44
Maximum Storage Temperature (°C) 150
Maximum Supply Current (mA) 2@16.5V/-0.8@-16.5V
Maximum Turn-Off Time (ns) 155@12V
Maximum Turn-On Time (ns) 250@±20V
Minimum Dual Supply Voltage (V) ±5
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 8
Minimum Storage Temperature (°C) -65
Multiplexer Architecture 4:1
Number of Channels per Chip 1
Number of Inputs per Chip 8
Number of Outputs per Chip 2
Output Signal Type Single
Polarity N/A
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) 35
Special Features Break-Before-Make|Fault Protected
Supplier Temperature Grade N/A
Switch Architecture N/R
Switch Control Logic N/R
Switch Normal Position N/R
Type Analog Multiplexer
Typical Dual Supply Voltage (V) ±15|±20
Typical Single Supply Voltage (V) 12|36
Typical Supply Current (mA) 1.3@16.5V/-0.65@-16.5V
