ADG1406BRUZ-REEL7
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- ADG1406BRUZ-REEL7_ANALOG_DEVICES
0,00 zł
Opis / ADG1406BRUZ-REEL7

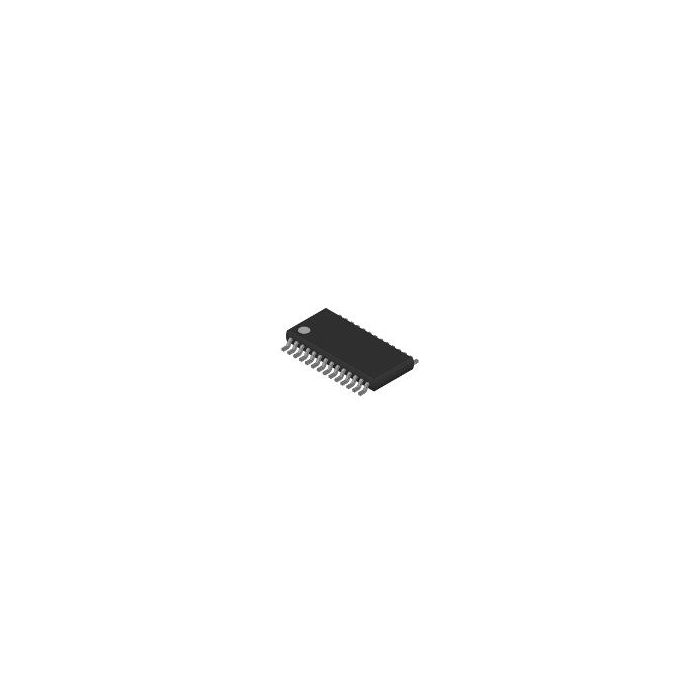

Analog Multiplexer Single 16:1 28-Pin TSSOP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 14
- Inventory 2
- PCNs 11
- MaskPart ADG1406BRUZ%
- IntroductionDate Aug 17, 2007
Parametry
- Chip Enable Signals Yes
- Configuration Single 16:1
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±16.5
- Maximum Frequency (25°C) @ Vcc (MHz) 35(Typ)@12V|40(Typ)@±5V|60(Typ)@±15V
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 25@±4.5V
- Maximum On Resistance Range (Ohm) 25 to 35
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 160@±15V|250@12V|435@±5V
- Maximum Single Supply Voltage (V) 16.5
- Maximum Supply Current (mA) ±0.001@±5.5V
- Maximum Turn-Off Time (ns) 290@±5V
- Maximum Turn-On Time (ns) 335@±5V
- Minimum Dual Supply Voltage (V) ±4.5
- Minimum Single Supply Voltage (V) 5
- Multiplexer Architecture 16:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 16
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) 35
- Special Features Break-Before-Make
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) ±5|±15
- Typical Single Supply Voltage (V) 12
- Typical Supply Current (mA) ±0.000002@±5.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 16:1 28-Pin TSSOP T/R |
