ADG1334BRSZ-REEL
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- ADG1334BRSZ-REEL_ANALOG_DEVICES
0,00 zł
Opis / ADG1334BRSZ-REEL

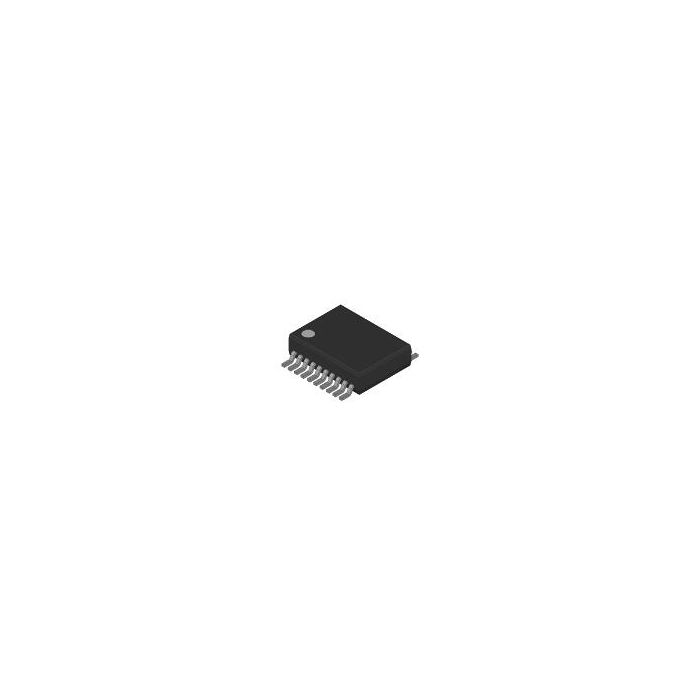

Analog Switch Quad SPDT 20-Pin SSOP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 381
- Inventory 4
- PCNs 10
- MaskPart ADG1334BRSZ%
- IntroductionDate Dec 22, 2005
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/A
- Maximum Frequency (25°C) @ Vcc (MHz) 500(Typ)@12V|700(Typ)@±15V
- Maximum High Level Output Current (mA) 24
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 500@10.8V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/A
- Maximum Supply Current (mA) 0.4@16.5V/-0.001@-16.5V@-40C to 105C
- Maximum Turn-Off Time (ns) 115@12V
- Maximum Turn-On Time (ns) 170@12V
- Minimum Dual Supply Voltage (V) N/A
- Minimum Single Supply Voltage (V) N/A
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 8
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Industrial
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±15
- Typical Single Supply Voltage (V) 12
- Typical Supply Current (mA) 0.26@16.5V/-0.000002@-16.5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPDT 20-Pin SSOP T/R |
