ADG1213YCPZ-500RL7
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST Automotive 16-Pin LFCSP EP T/R |

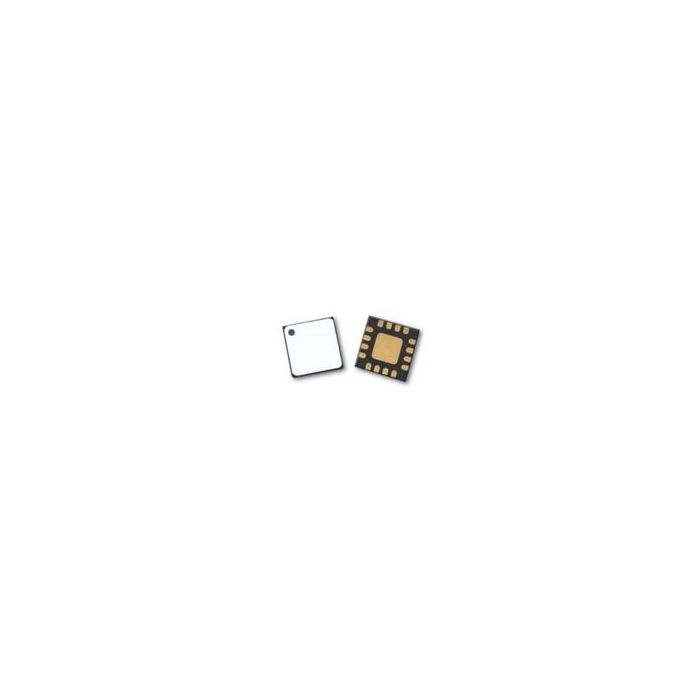

Analog Switch Quad SPST Automotive 16-Pin LFCSP EP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 590
- Inventory 8
- PCNs 13
- MaskPart ADG1213YCPZ500%
- IntroductionDate Sep 09, 2003
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/A
- Maximum Frequency (25°C) @ Vcc (MHz) 1000(Typ)@±15V|900(Typ)@12V
- Maximum High Level Output Current (mA) 25
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 475@10.8V
- Maximum On Resistance Range (Ohm) 400 to 1000
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/A
- Maximum Supply Current (mA) 0.38@16.5V/-0.001@-16.5V@-40C to 125C
- Maximum Turn-Off Time (ns) 120@12V
- Maximum Turn-On Time (ns) 170@12V
- Minimum Dual Supply Voltage (V) N/A
- Minimum Single Supply Voltage (V) N/A
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single|Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Automotive
- Switch Architecture SPST
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) ±15
- Typical Single Supply Voltage (V) 12
- Typical Supply Current (mA) 0.22@16.5V/-0.000001@-16.5V
