AD9554BCPZ-REEL

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD9554BCPZ-REEL_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD9554BCPZ-REEL

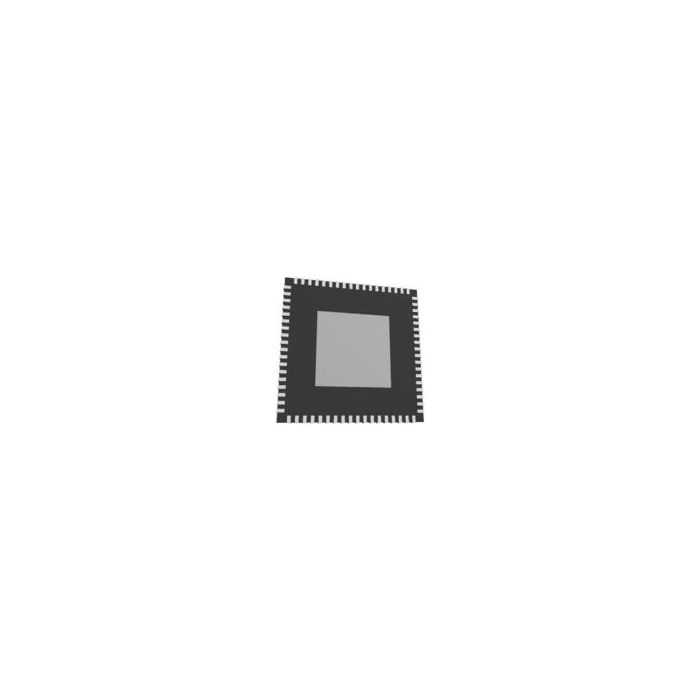

Clock Generator 0.002MHz to 1GHz-IN 941MHz-OUT 72-Pin LFCSP EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 4*
  • PCNs 8
  • MaskPart AD9554BCPZ%

Parametry

  • Clock Input Frequency (MHz) 0.002 to 1000
  • Input Logic Level CMOS|Crystal|LVDS|LVPECL
  • Maximum Operating Supply Voltage (V) 2.625
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Frequency (MHz) 941
  • Maximum Power Dissipation (mW) 14700
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.47
  • Minimum Operating Temperature (°C) -40
  • Number of Clock Inputs 4
  • Number of Outputs per Chip 8
  • Output Logic Level CMOS|HCSL|LVDS|LVPECL
  • Programmability No
  • Spread Spectrum No
  • Supplier Temperature Grade Industrial
  • Typical Duty Cycle (%) 50
  • Typical Operating Supply Voltage (V) 1.5|1.8

Więcej informacji

Do pobrania Download
Main description Clock Generator 0.002MHz to 1GHz-IN 941MHz-OUT 72-Pin LFCSP EP T/R
