AD9467BCPZRL7-250

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD9467BCPZRL7-250_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD9467BCPZRL7-250

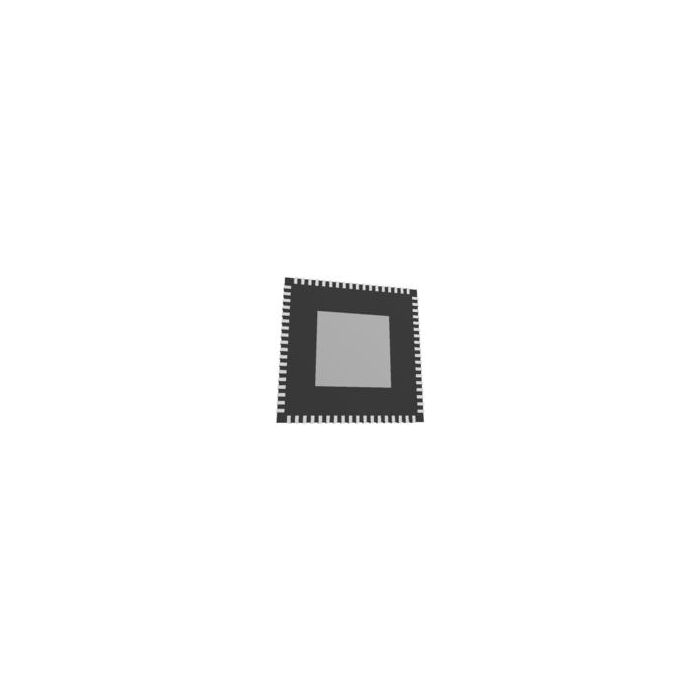

1-Channel Single ADC Pipelined 250Msps 16-bit LVDS 72-Pin LFCSP EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 2*
  • PCNs 7
  • MaskPart AD9467BCPZ250%
  • IntroductionDate Oct 28, 2010

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity -0.6/1.3LSB
  • Digital Interface Type LVDS
  • Digital Supply Support No
  • Full Scale Error -3.5/2.5%FSR
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 2.5Vp-p
  • Integral Nonlinearity Error -11.8/9.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1450
  • Maximum Single Supply Voltage (V) 1.85/1.9/3.6
  • Maximum Storage Temperature (°C) 150
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7/1.75/3
  • Minimum Storage Temperature (°C) -65
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 16bit
  • Sample and Hold Yes
  • Sampling Rate 250Msps
  • Signal to Noise Ratio 76.4dBFS(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 1330
  • Typical Single Supply Voltage (V) 1.8/3.3
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 250Msps 16-bit LVDS 72-Pin LFCSP EP T/R
