AD9239BCPZ-170

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD9239BCPZ-170_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD9239BCPZ-170

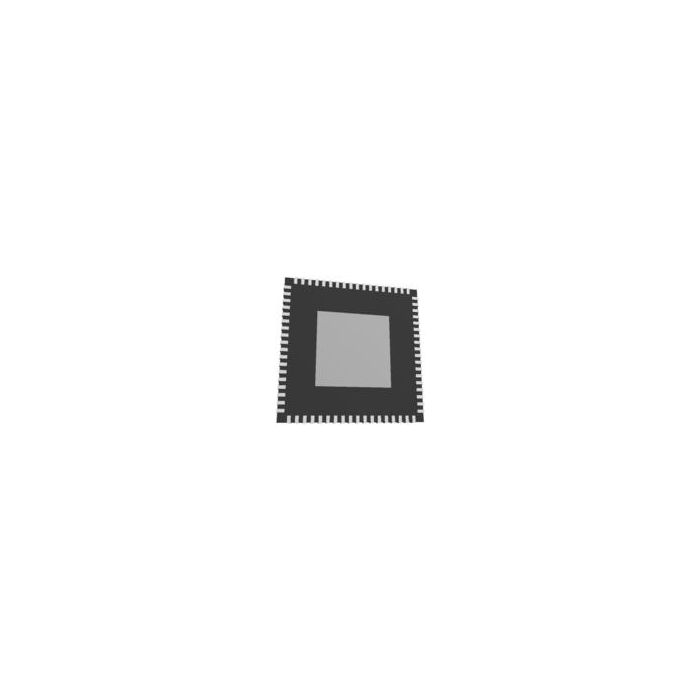

4-Channel Quad ADC Pipelined 170Msps 12-bit Serial 72-Pin LFCSP EP Tray

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 2
  • PCNs 7
  • MaskPart AD9239BCPZ170%
  • IntroductionDate Oct 01, 2008

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.6LSB
  • Digital Interface Type Serial (3-Wire, 4-Wire, SPI)
  • Digital Supply Support No
  • Full Scale Error -2.8/4.7%FSR
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 1.25Vp-p
  • Integral Nonlinearity Error ±0.9LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1215
  • Maximum Single Supply Voltage (V) 1.9
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 4
  • Number of Input Channels 4
  • Polarity of Input Voltage Unipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 170Msps
  • Signal to Noise Ratio 64.5dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 1139
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference Internal
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 4-Channel Quad ADC Pipelined 170Msps 12-bit Serial 72-Pin LFCSP EP Tray
