AD9215BRUZ-105
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- AD9215BRUZ-105_ANALOG_DEVICES
0,00 zł
Opis / AD9215BRUZ-105

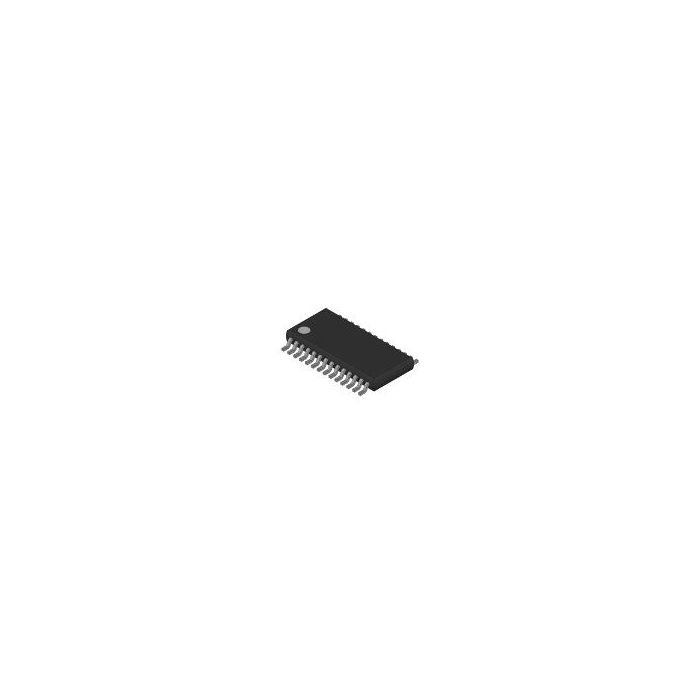

1-Channel Single ADC Pipelined 105Msps 10-bit Parallel 28-Pin TSSOP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 153
- Inventory 7
- PCNs 8
- MaskPart AD9215BRUZ105%
- IntroductionDate Aug 20, 2002
Parametry
- Architecture Pipelined
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1.2LSB
- Digital Interface Type Parallel
- Digital Supply Support No
- Full Scale Error 4%FSR
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage 1Vp-p/2Vp-p
- Integral Nonlinearity Error ±1.2LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 3.3
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 3.3
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- Minimum Storage Temperature (°C) -65
- No Missing Codes (bit) 10
- Number of ADCs 1
- Number of Input Channels 1
- Polarity of Input Voltage Unipolar
- Resolution 10bit
- Sample and Hold Yes
- Sampling Rate 105Msps
- Signal to Noise Ratio 58.5dB(Typ)
- Single-Ended Input Yes
- Supplier Temperature Grade Industrial
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 120
- Typical Single Supply Voltage (V) 3
- Voltage Reference Internal|External
- Voltage Supply Source Single
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | 1-Channel Single ADC Pipelined 105Msps 10-bit Parallel 28-Pin TSSOP Tube |
