AD9203ARUZRL7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD9203ARUZRL7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD9203ARUZRL7

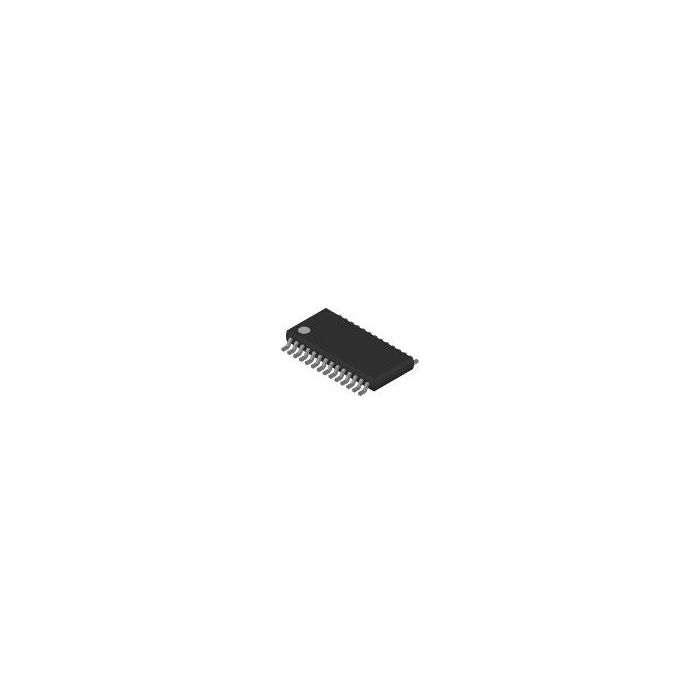

1-Channel Single ADC Pipelined 40Msps 10-bit Parallel 28-Pin TSSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 270
  • Inventory 4
  • PCNs 8
  • MaskPart AD9203ARUZ%
  • IntroductionDate Jul 01, 1999

Parametry

  • Architecture Pipelined
  • Converter Type Video
  • Differential Input Yes
  • Differential Nonlinearity ±0.7LSB
  • Digital Interface Type Parallel
  • Digital Supply Support Yes
  • Full Scale Error ±4%FSR
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2Vp-p
  • Integral Nonlinearity Error ±1.4LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 3.6
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 2.7
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 40Msps
  • Signal to Noise Ratio 60dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 3
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 40Msps 10-bit Parallel 28-Pin TSSOP T/R
