AD8664ARUZ-REEL
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Quad Low Noise Amplifier R-R O/P 16V 14-Pin TSSOP T/R |

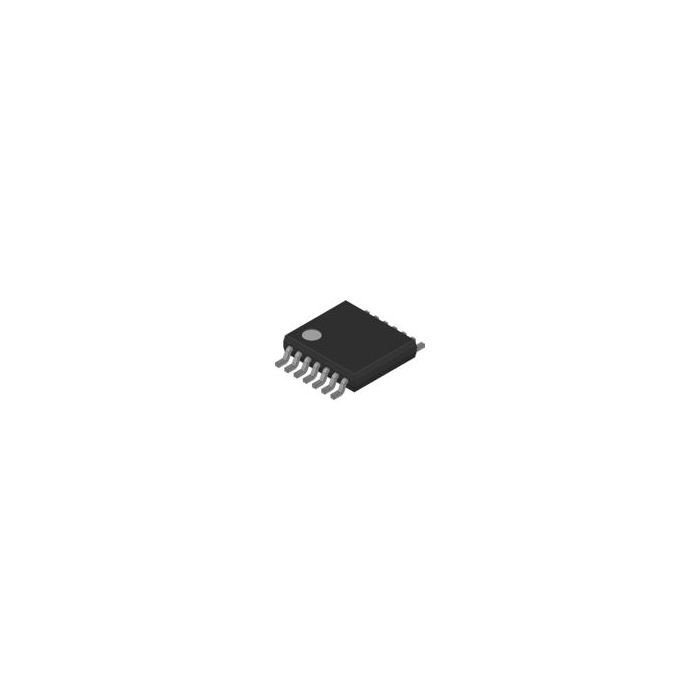

Op Amp Quad Low Noise Amplifier R-R O/P 16V 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 204
- Inventory 6*
- PCNs 14
- MaskPart AD8664ARUZ%
- IntroductionDate Oct 06, 2004
Parametry
- Manufacturer Type Low Noise Amplifier
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.000001@5V
- Maximum Input Offset Current (uA) 0.0000005@5V
- Maximum Input Offset Voltage (mV) 0.1@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 16
- Maximum Supply Current (mA) 4.2@5V
- Maximum Supply Voltage Range (V) 16 to 17
- Minimum CMRR (dB) 85
- Minimum CMRR Range (dB) 85 to 90
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) 5
- Number of Channels per Chip 4
- Output Type CMOS
- Power Supply Type Single
- Process Technology CMOS
- Rail to Rail Rail to Rail Output
- Shut Down Support No
- Supplier Temperature Grade Extended Industrial
- Type Low Noise Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 4
- Typical Input Noise Voltage Density (nV/rtHz) 12@5V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) 0.1@5V
- Typical Output Current (mA) N/A
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 9|12|15
- Typical Slew Rate (V/us) 3.5@5V
- Typical Voltage Gain (dB) 106.85
