AD8612ARUZ-REEL

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD8612ARUZ-REEL_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD8612ARUZ-REEL

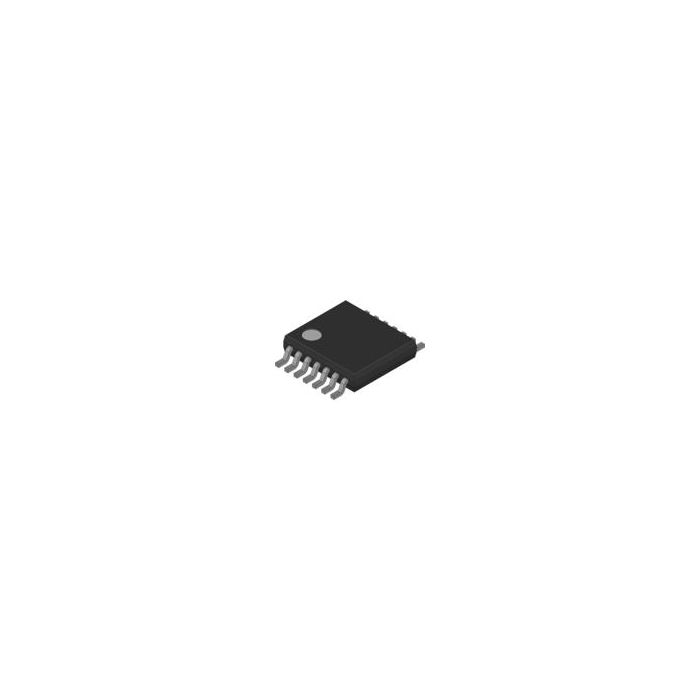

Comparator Dual 5V 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • Inventory 3
  • PCNs 8
  • MaskPart AD8612ARUZ%
  • IntroductionDate Apr 01, 2000

Parametry

  • Manufacturer Type Ultra Fast Comparator
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) 6(Min)@5V
  • Maximum Input Offset Voltage (mV) 7@5V
  • Maximum Operating Supply Voltage (V) 5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) 5.5
  • Maximum Quiescent Current (mA) N/A
  • Maximum Single Supply Voltage (V) 5
  • Maximum Supply Current (mA) 10@5V/-4@5V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3
  • Number of Channels per Chip 2
  • Output Type Complementary
  • Power Supply Type Single
  • Process Technology Bipolar
  • Rail to Rail N/A
  • Strobe Capability No
  • Supplier Temperature Grade Industrial
  • Typical CMRR (dB) 85
  • Typical Dual Supply Voltage (V) N/R
  • Typical Output Current (mA) N/A
  • Typical PSRR (dB) 73
  • Typical Response Time (us) N/A
  • Typical Response Time Range (us) N/A
  • Typical Single Supply Voltage (V) N/A
  • Typical Voltage Gain (dB) 69.54
  • Typical Voltage Gain Range (dB) 40 to 70

Więcej informacji

Do pobrania Download
Main description Comparator Dual 5V 14-Pin TSSOP T/R
