AD8304ARUZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD8304ARUZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD8304ARUZ

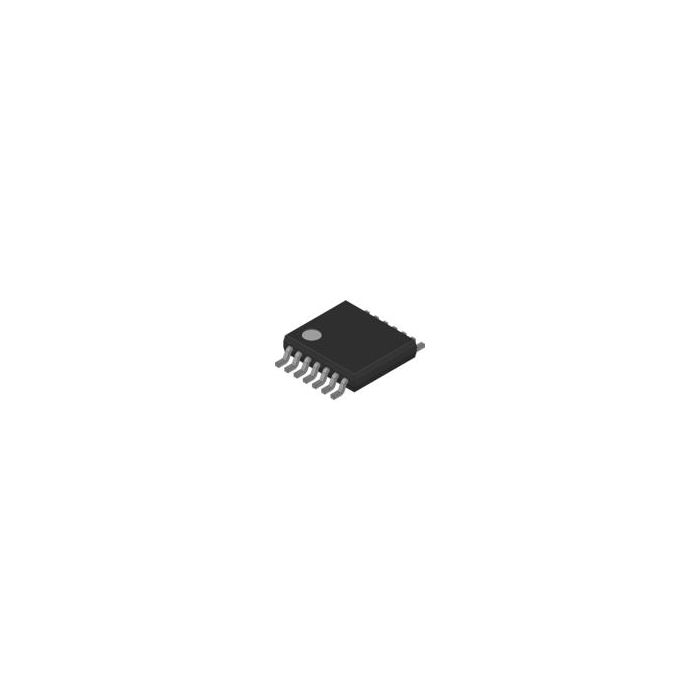

SP Amp LOG Amp Single R-R O/P 5.5V 14-Pin TSSOP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 10
  • PCNs 8
  • MaskPart AD8304ARUZ%
  • IntroductionDate Jul 18, 2002

Parametry

  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) 0.4(Typ)@5V
  • Maximum Input Offset Voltage (mV) 20@5V
  • Maximum Input Resistance (MOhm) 35(Typ)@5V
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 270
  • Maximum Quiescent Current (mA) 5.3@5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Supply Voltage Range (V) 5 to 7
  • Maximum Voltage Gain (dB) N/A
  • Maximum Voltage Gain Range (dB) N/A
  • Minimum CMRR (dB) N/A
  • Minimum CMRR Range (dB) N/A
  • Minimum DC Continuous Isolation Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) N/A
  • Minimum Single Supply Voltage (V) 3
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 1
  • Number of Elements per Chip 2
  • Output Type N/A
  • Power Supply Type Single
  • Rail to Rail Rail to Rail Output
  • Supplier Temperature Grade N/A
  • Type Logarithmic Amplifier
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Current (mA) N/A
  • Typical Single Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description SP Amp LOG Amp Single R-R O/P 5.5V 14-Pin TSSOP Tube
