AD7863BRZ-10

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7863BRZ-10_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7863BRZ-10

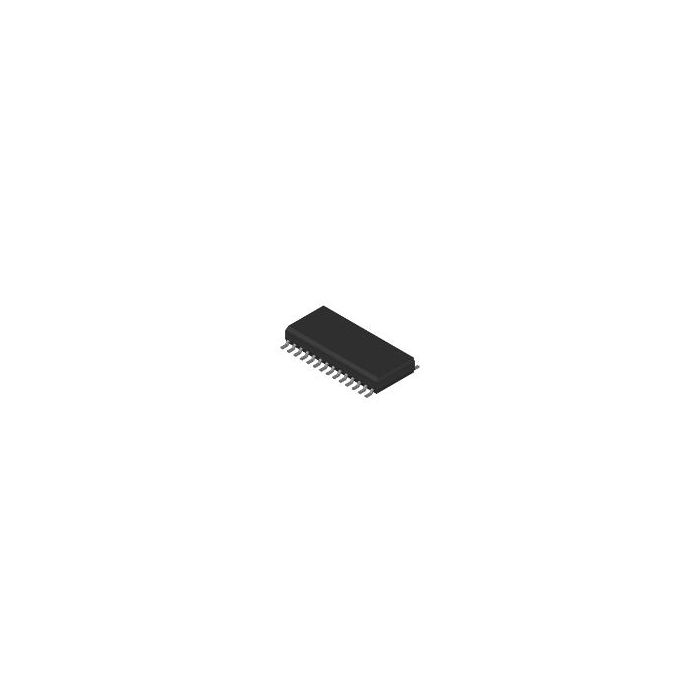

4-Channel Dual ADC SAR 175ksps 14-bit Parallel 28-Pin SOIC W Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 75
  • Inventory 2
  • PCNs 8
  • MaskPart AD7863BRZ10%
  • IntroductionDate Feb 13, 1997

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity -1/2LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±8LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage ±10V
  • Integral Nonlinearity Error ±2LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 94.5
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 14
  • Number of ADCs 2
  • Number of Input Channels 4
  • Polarity of Input Voltage Bipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 175ksps
  • Signal to Noise Ratio 78dB
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 70
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 4-Channel Dual ADC SAR 175ksps 14-bit Parallel 28-Pin SOIC W Tube
