AD7856ANZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7856ANZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7856ANZ

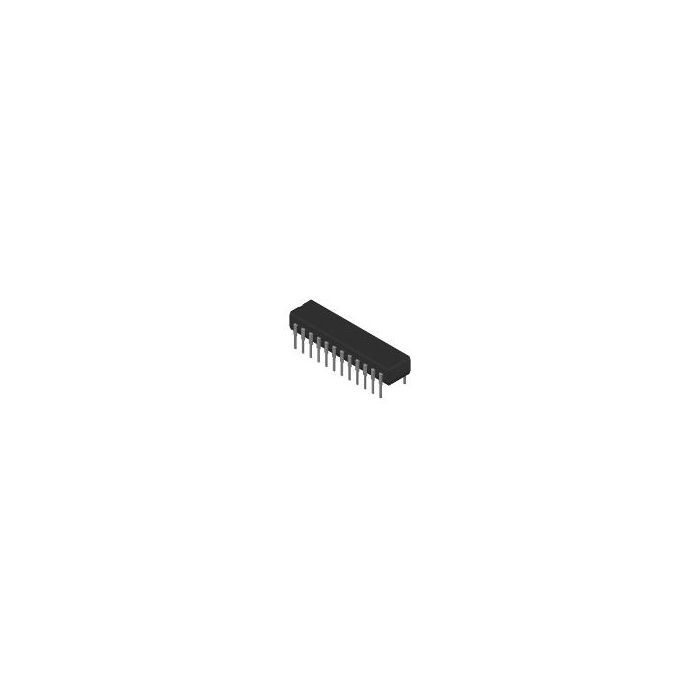

8-Channel Single ADC SAR 285ksps 14-bit Serial 24-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 260
  • Inventory 3
  • PCNs 14
  • MaskPart AD7856ANZ%
  • IntroductionDate Aug 13, 1996

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±2LSB(Typ)
  • Digital Interface Type Serial (2-Wire, 3-Wire, SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±10LSB(Typ)
  • Input Signal Type Single-Ended|Pseudo-Differential
  • Input Type Voltage
  • Input Voltage 5V
  • Integral Nonlinearity Error ±2LSB(Typ)
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 105
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 89.25
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 13
  • Number of ADCs 1
  • Number of Input Channels 8|4
  • Polarity of Input Voltage Unipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 285ksps
  • Signal to Noise Ratio 79.5dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 60
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC SAR 285ksps 14-bit Serial 24-Pin PDIP N Tube
