AD7843ARQZ-REEL7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7843ARQZ-REEL7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7843ARQZ-REEL7

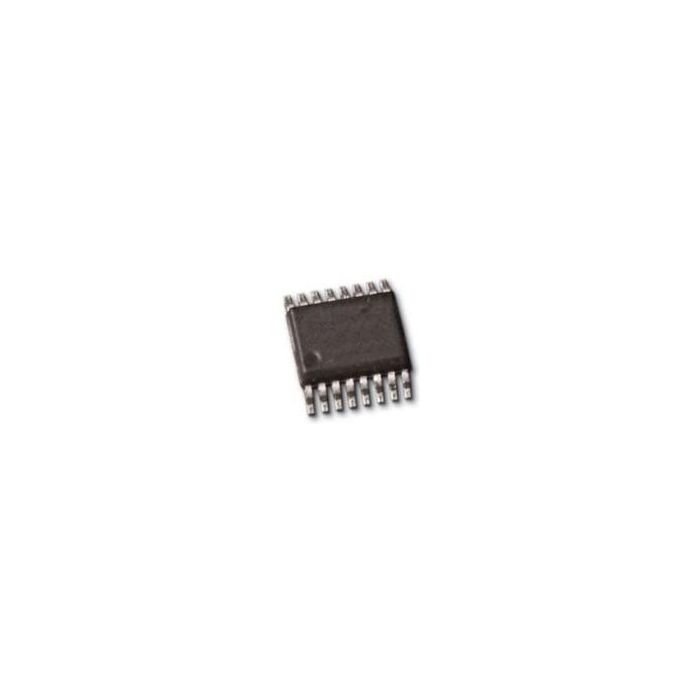

2-Channel Single ADC SAR 125ksps 12-bit Serial 16-Pin QSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 49
  • Inventory 2
  • PCNs 12
  • MaskPart AD7843ARQZ%
  • IntroductionDate Nov 03, 2000

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial (4-Wire)
  • Digital Supply Support No
  • Full Scale Error ±4LSB
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2.5V
  • Integral Nonlinearity Error ±2LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1.368
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) 11
  • Number of ADCs 1
  • Number of Input Channels 2
  • Polarity of Input Voltage Unipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 125ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 3.3
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 2-Channel Single ADC SAR 125ksps 12-bit Serial 16-Pin QSOP T/R
