AD7829BRWZ-1RL7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7829BRWZ-1RL7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7829BRWZ-1RL7

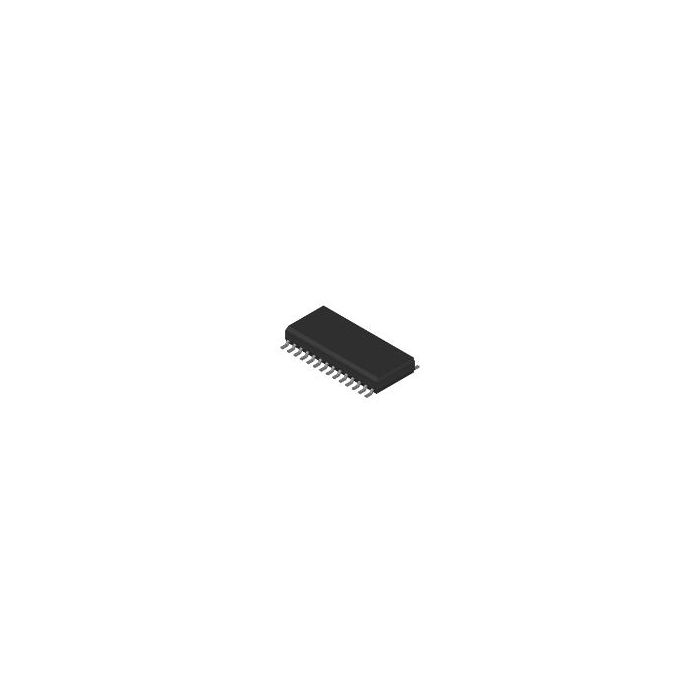

8-Channel Single ADC Semiflash 2Msps 8-bit Parallel 28-Pin SOIC W T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 1
  • PCNs 9
  • MaskPart AD7829BRWZ1%
  • IntroductionDate Jul 01, 2006

Parametry

  • Architecture Semiflash
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±0.75LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±2LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 2Vp-p/2.5Vp-p
  • Integral Nonlinearity Error ±0.75LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 36
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) 8
  • Number of ADCs 1
  • Number of Input Channels 8
  • Polarity of Input Voltage Unipolar
  • Resolution 8bit
  • Sample and Hold Yes
  • Sampling Rate 2Msps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 24
  • Typical Single Supply Voltage (V) 3|5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC Semiflash 2Msps 8-bit Parallel 28-Pin SOIC W T/R
