AD7764BRUZ-REEL7

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7764BRUZ-REEL7_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7764BRUZ-REEL7

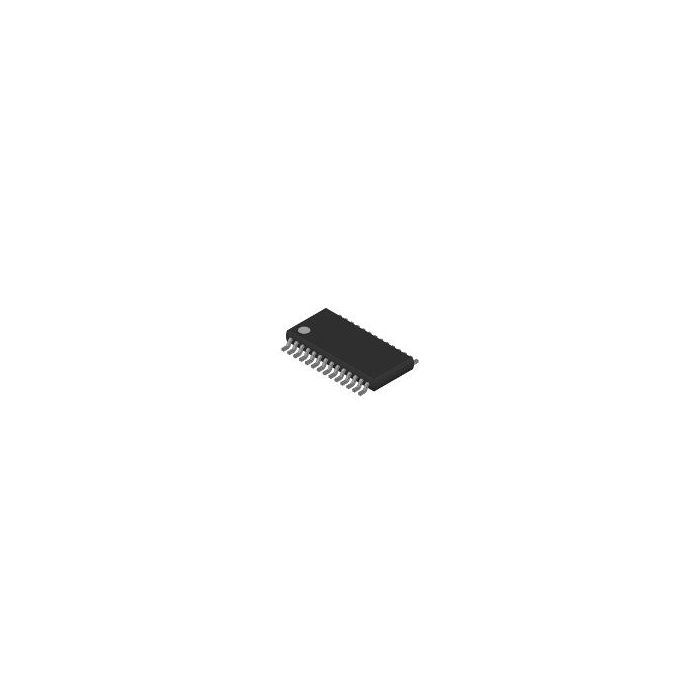

1-Channel Single ADC Delta-Sigma 312ksps 24-bit Serial 28-Pin TSSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 5*
  • PCNs 9
  • MaskPart AD7764BRUZ%
  • IntroductionDate Jun 05, 2007

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial (SPI)
  • Digital Supply Support Yes
  • Full Scale Error 0.04%FSR(Typ)
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±3.2768Vp-p
  • Integral Nonlinearity Error 0.0036%FSR(Typ)
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 371
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar
  • Resolution 24bit
  • Sample and Hold No
  • Sampling Rate 312ksps
  • Signal to Noise Ratio 109dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 300
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Delta-Sigma 312ksps 24-bit Serial 28-Pin TSSOP T/R
