AD7710ANZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7710ANZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7710ANZ

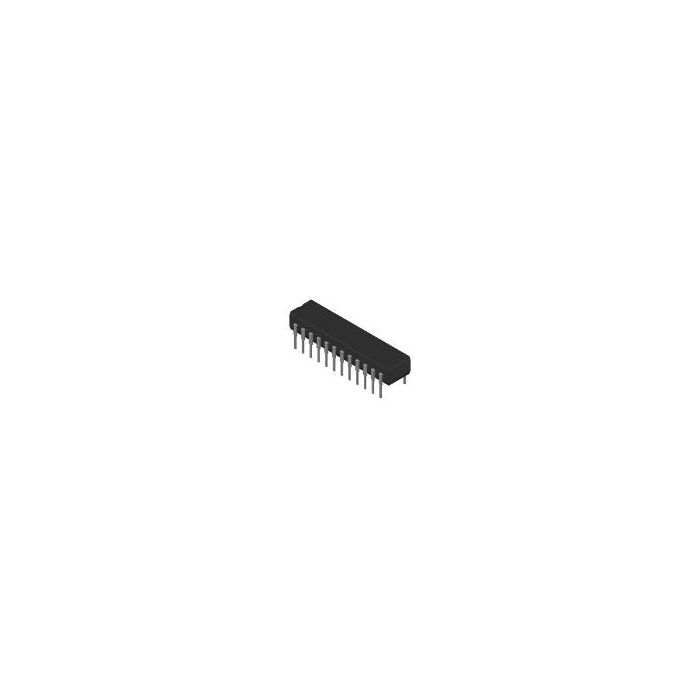

2-Channel Single ADC Delta-Sigma 1.028ksps 24-bit Serial 24-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 6
  • PCNs 13
  • MaskPart AD7710ANZ%
  • IntroductionDate Oct 28, 1995

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial
  • Digital Supply Support Yes
  • Full Scale Error ±0.006%FSR
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 5V|±5V
  • Integral Nonlinearity Error ±0.003%FSR
  • Maximum Dual Supply Voltage (V) -5.25/10.5
  • Maximum Negative Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 10.5/5.25
  • Maximum Power Dissipation (mW) 52.5
  • Maximum Single Supply Voltage (V) 10.5
  • Minimum Dual Supply Voltage (V) ±4.75
  • Minimum Negative Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 24
  • Number of ADCs 1
  • Number of Input Channels 2
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 24bit
  • Sample and Hold Yes
  • Sampling Rate 1.028ksps
  • Signal to Noise Ratio 131dB
  • Single-Ended Input No
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) ±5|-5/10
  • Typical Power Dissipation (mW) 30
  • Typical Single Supply Voltage (V) 5|10
  • Voltage Reference Internal|External
  • Voltage Supply Source Single|Dual

Więcej informacji

Do pobrania Download
Main description 2-Channel Single ADC Delta-Sigma 1.028ksps 24-bit Serial 24-Pin PDIP N Tube
