AD7701BNZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7701BNZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7701BNZ

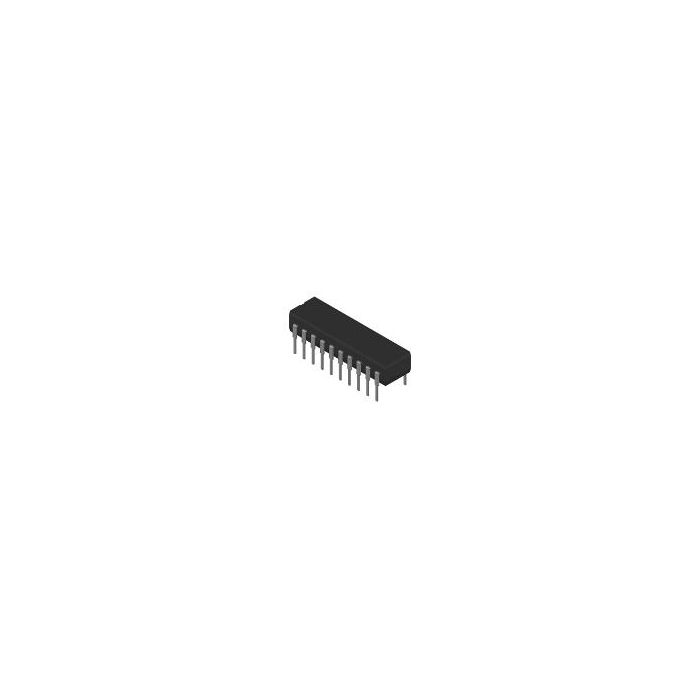

1-Channel Single ADC Delta-Sigma 4ksps 16-bit Serial 20-Pin PDIP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • Inventory 3
  • PCNs 12
  • MaskPart AD7701BNZ%
  • IntroductionDate May 09, 1996

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±0.5LSB
  • Digital Interface Type Serial
  • Digital Supply Support Yes
  • Full Scale Error ±2LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 2.5V|±2.5V
  • Integral Nonlinearity Error ±0.0015%FSR
  • Maximum Dual Supply Voltage (V) ±5.5
  • Maximum Negative Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.5
  • Maximum Power Dissipation (mW) 37
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) ±4.5
  • Minimum Negative Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.5
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 16bit
  • Sample and Hold Yes
  • Sampling Rate 4ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) ±5
  • Typical Power Dissipation (mW) 25
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Delta-Sigma 4ksps 16-bit Serial 20-Pin PDIP Tube
